12x12 Moonbox On Backlot Nighttime Commercial

Moonbox in studio backlot at night

Commercial

Moonbox in studio backlot at night

Commercial

Moonbox in studio backlot at night

Commercial

about the project

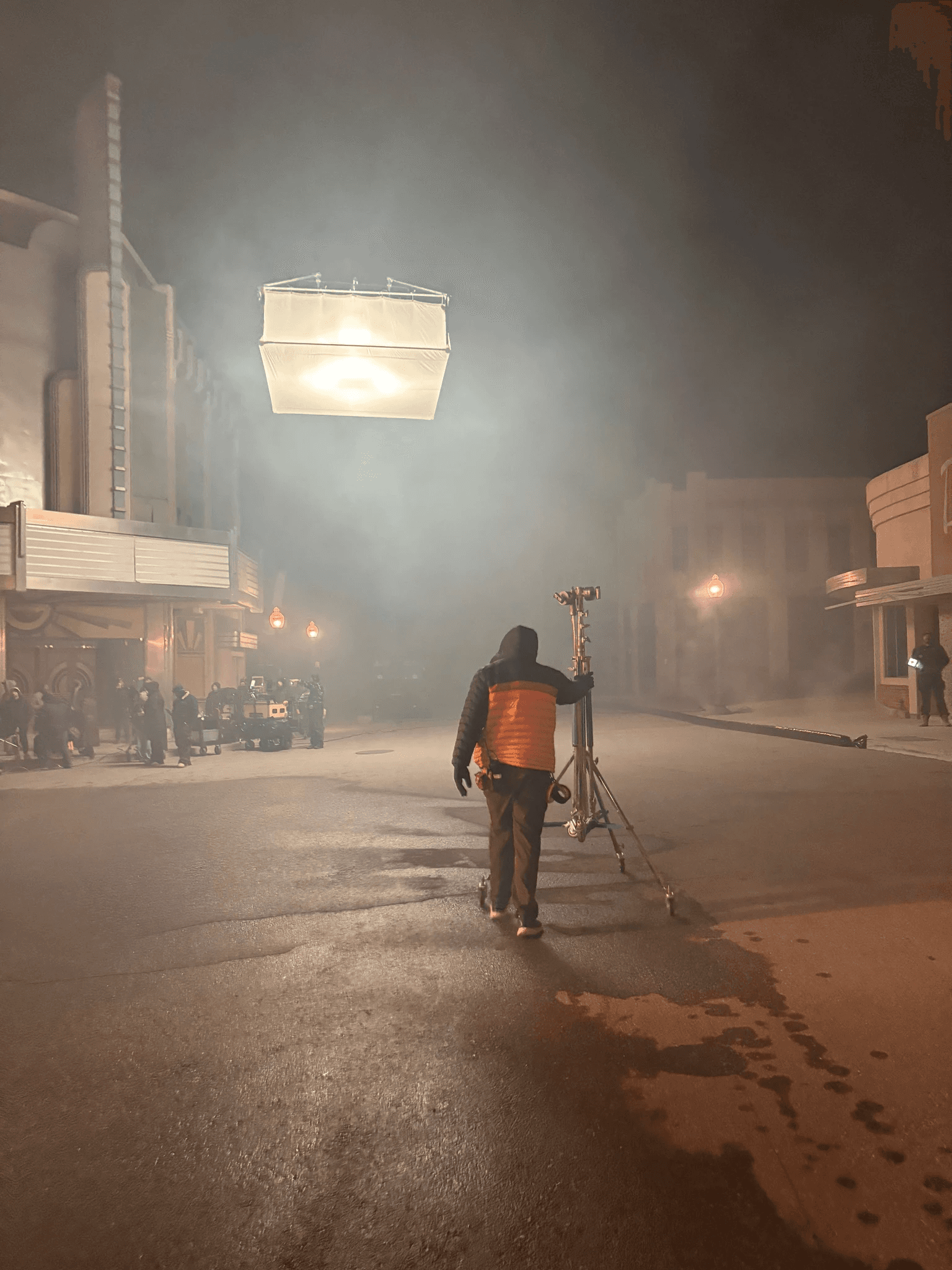

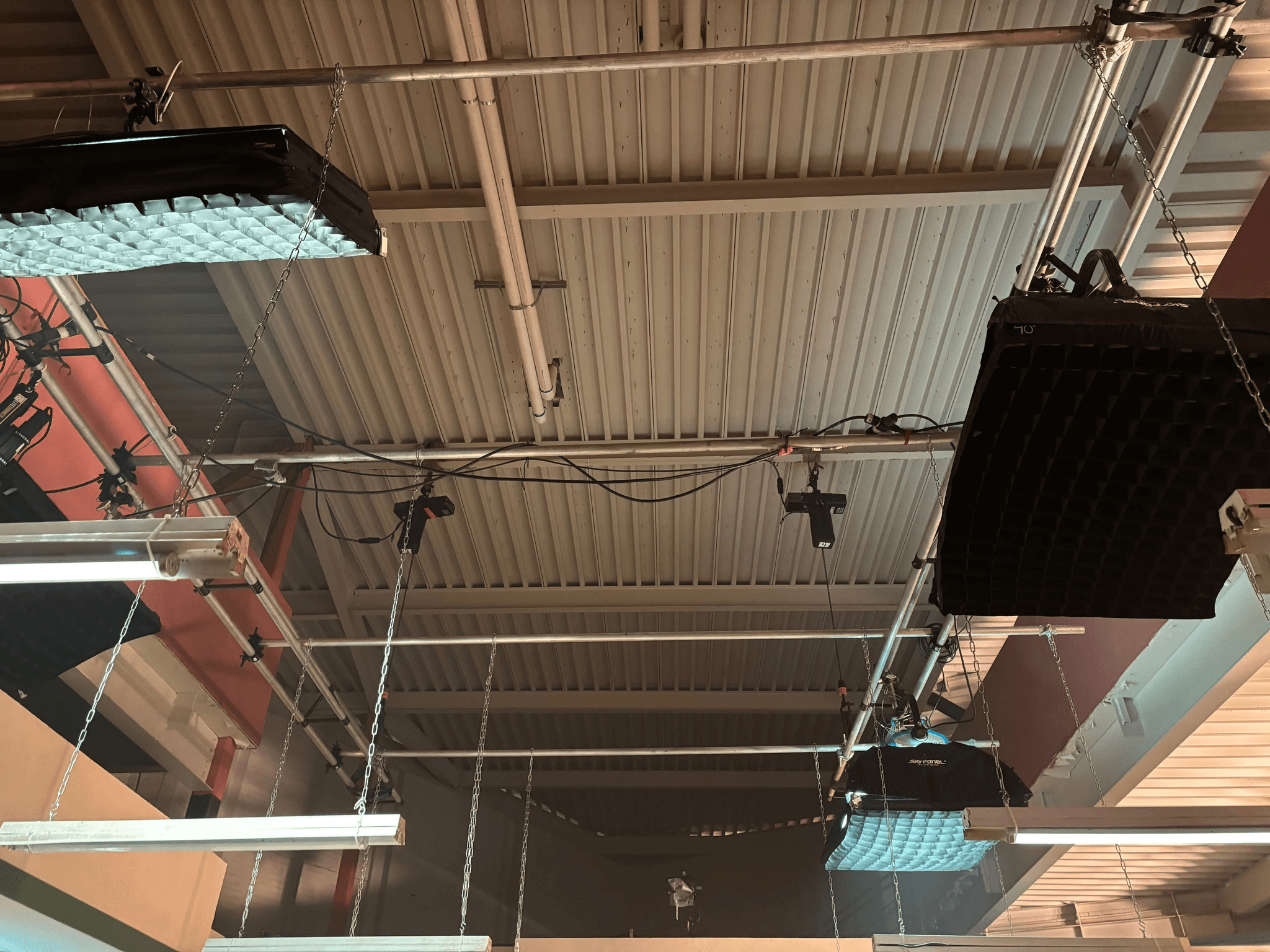

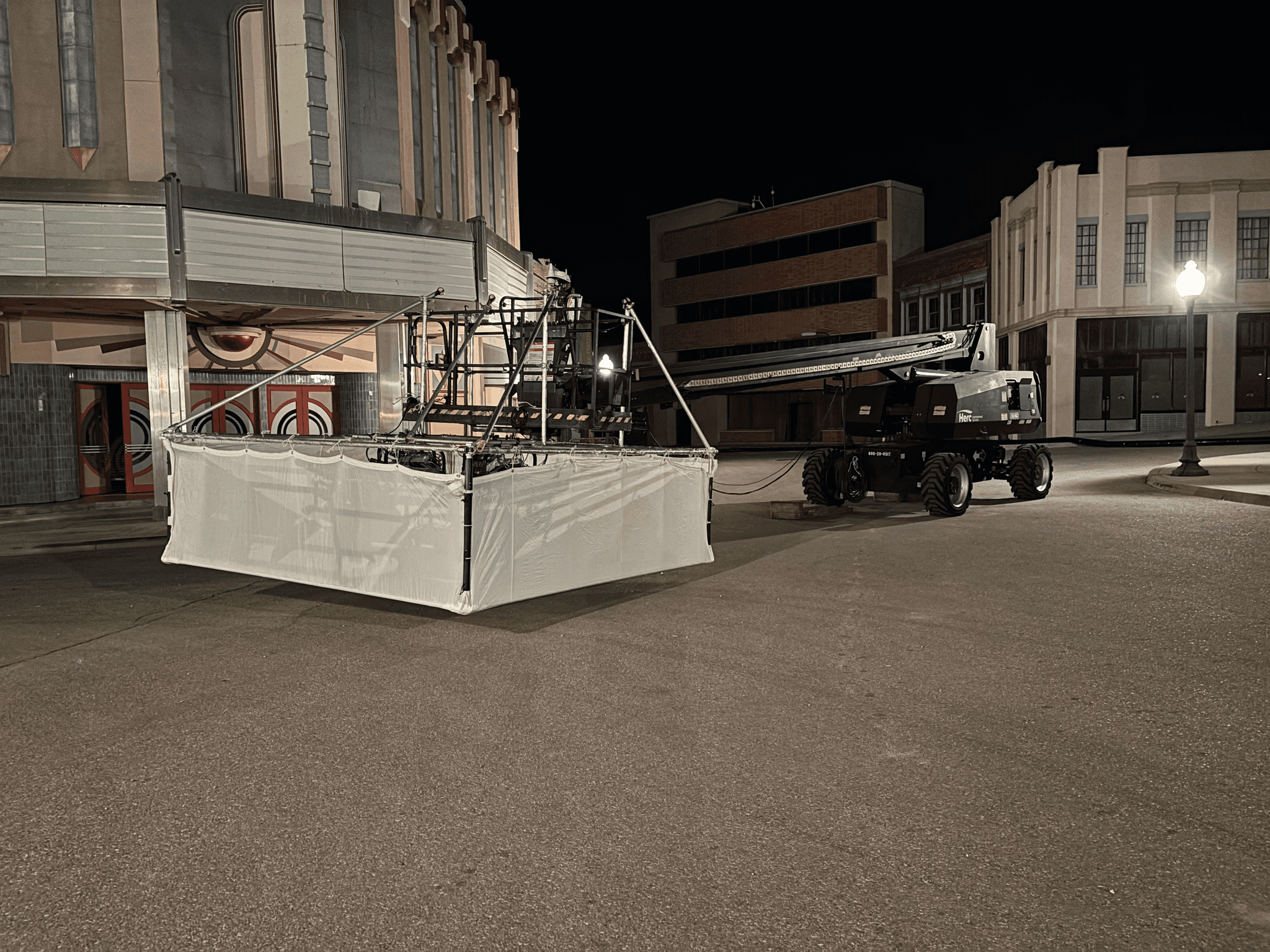

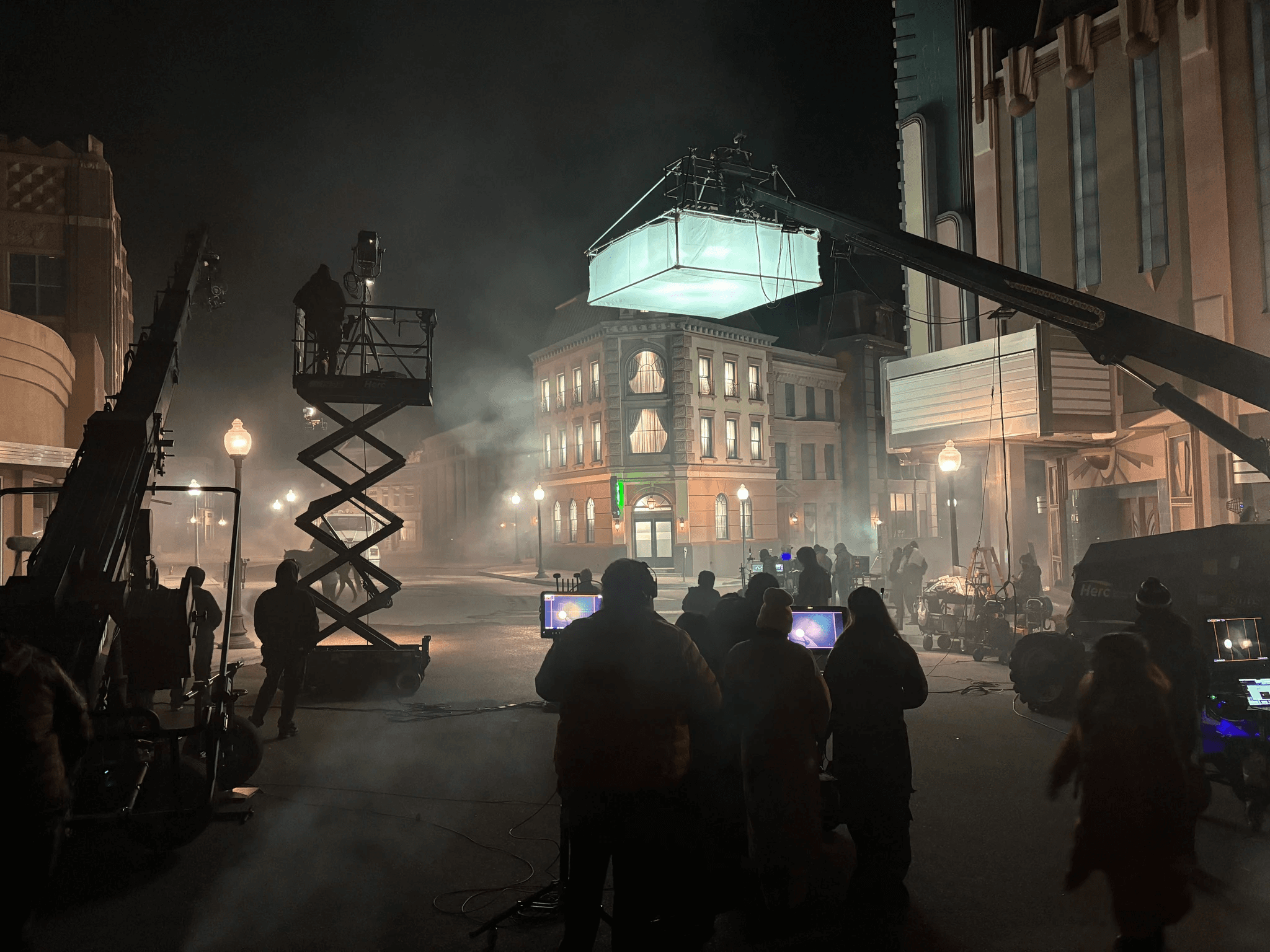

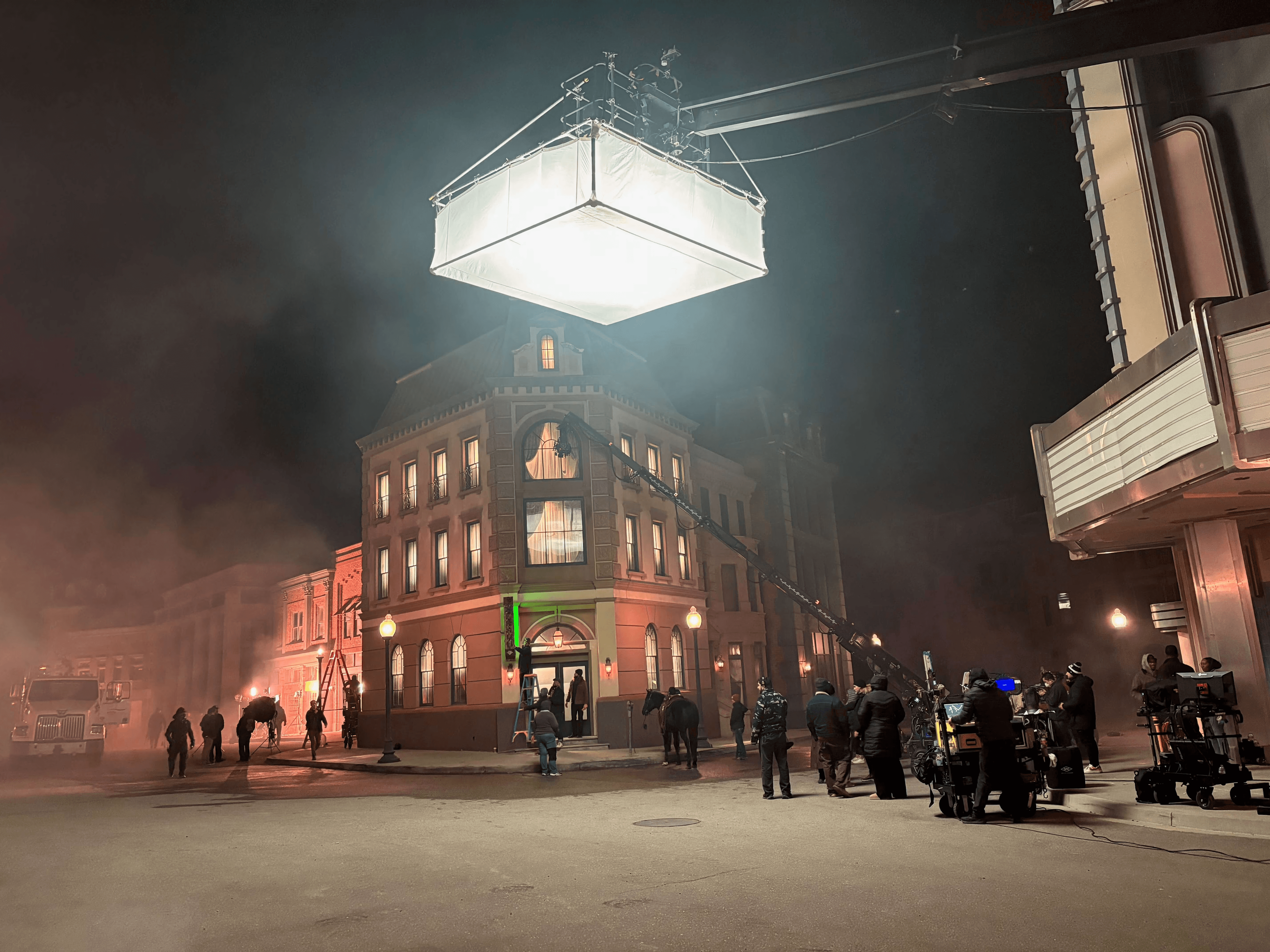

Commercial shoot for a digital wallet company. Pre rig and a shoot day. Shot in a NYC backlot, we lit 3 interior sets and 1 exterior set. Interior consisted of hanging a pipe grid from overhead beams with 1/3 ton motors. Art attached practicals and set lighting hung units. Moving light gag outside for a lighting effect. 3 doorway dollies with T12’s ran a 40’ length of track and pushed by the grip department. Interior auction house was a complete art transformation. Flowy curtains and a custom build circular platform brought the place to life and provided a nice canvas for gaffer Dimitri to light against. Night exterior was a set lighting show. They wired up dozens of street lamps & wall sconces and illuminated each window in the facade. Main exterior push was a 12x12 moonbox with 4x Skypanel S60’s in it with 1/4 grid. Collective Camera Cranes swung around the Scorpio 45’ with the matrix head.

Behind the Scenes

Behind the Scenes

Behind the Scenes

Lighting

Lighting

Lighting

Condor Rigging

Condor Rigging

Condor Rigging

Project role

Key Grip

softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors
softbox on stage with colors

built with

12” Box Truss

12” Box Truss

12” Box Truss

JLG

JLG

JLG

Modulus-X™ Truss

Modulus-X™ Truss

Modulus-X™ Truss

by:

Brendan Riel

similar posts

similar posts

rig breakdown

rig breakdown

rig breakdown

12x12 ModX Softbox On A Gradall

Softboxes

by:

Brendan Riel

Built the frame out of 6” ModX and the carriage frame attachment out of 9” ModX. 6’ vertical of tower provided the high connection points for come alongs that ran out to the frame corners.

Read >

rig breakdown

rig breakdown

rig breakdown

12x12 Moonbox On A Condor

Softboxes

by:

Brendan Riel

Rigged the center of gravity as far toward the back of the bucket without interfering with any bucket tilt capabilities in order to help with adjusted weight.

Read >

20x20 flyswatter with diffusion

rig breakdown

20x20 flyswatter with diffusion

rig breakdown

20x20 flyswatter with diffusion

rig breakdown

20x20 Flyswatter

Softboxes

by:

Brendan Riel

20x20 flyswatter on a JLG 800S. My preffered flat swatter build off the bucket with speedrail, cheeseboros, tri truss, and steel pipe.

Read >

top

rig breakdown

top

rig breakdown

top

rig breakdown

20x20 ModX Softbox

Softboxes

by:

Brendan Riel

20x20x4 softbox made out of Modulus-X Mx|66|. I find the rigidity of the modulus-x allows you to tilt the box and aim it more aggressively. It’s slimmer and a bit more versatile than a 12” box truss build.

Read >
