20x20 ModX Softbox
Commercial
Commercial
Commercial
about the rig
20x20x4 softbox made out of Modulus-X Mx|66|. I find the rigidity of the modulus-x allows you to tilt the box and aim it more aggressively. It’s slimmer and a bit more versatile than a 12” box truss build. The truss provides a strong support structure for the entire build. We set this box up with a center rib for the cross pipe support. Gaffer Tony Jou employed the use of 8 skypanel S60’s to evenly fill the box. We finished the box up with some full grid diffusion and duvetyne sides. The box hung on 4 1/2 ton chain motors.

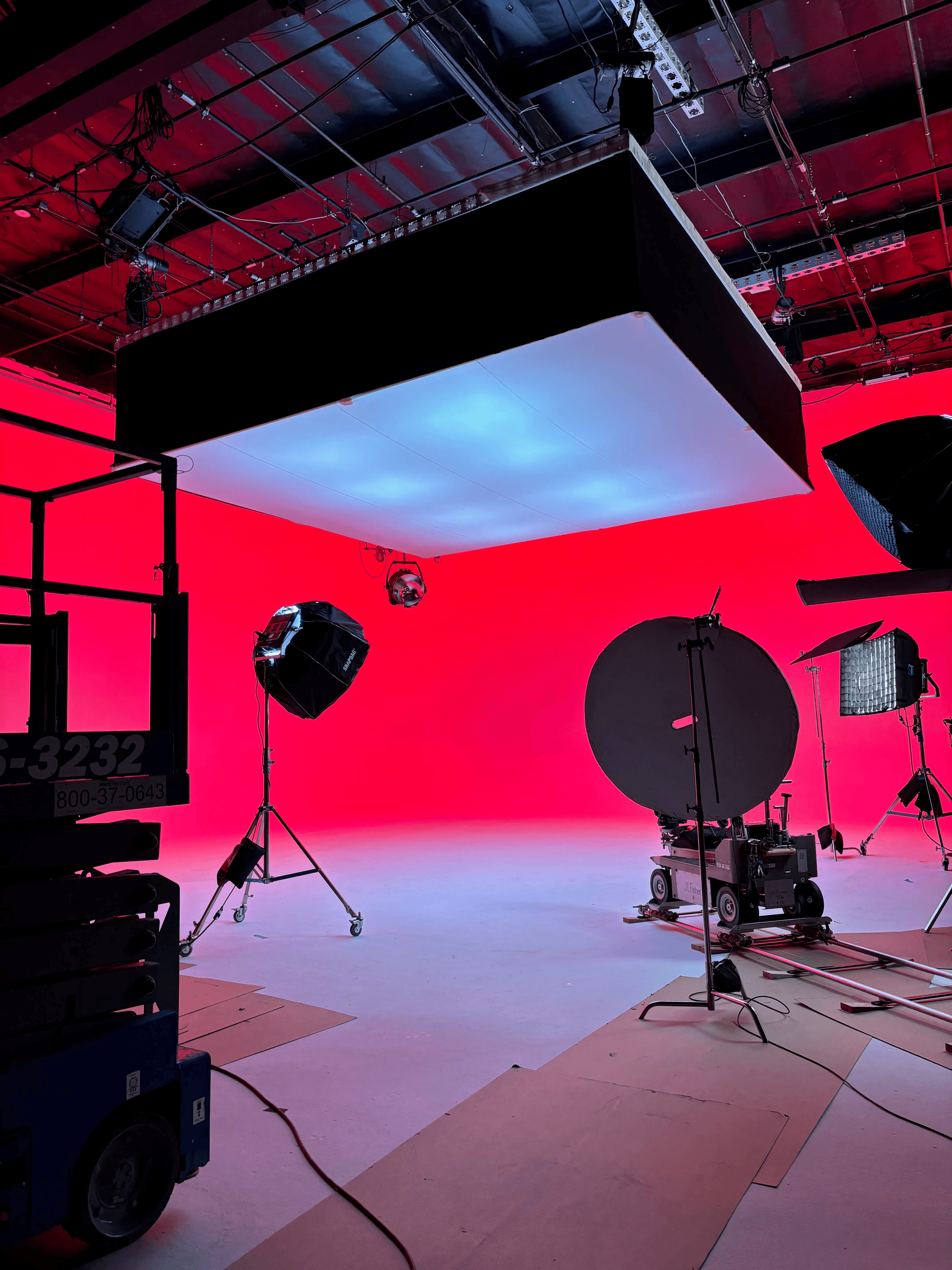

Behind the Scenes
Behind the Scenes
Behind the Scenes

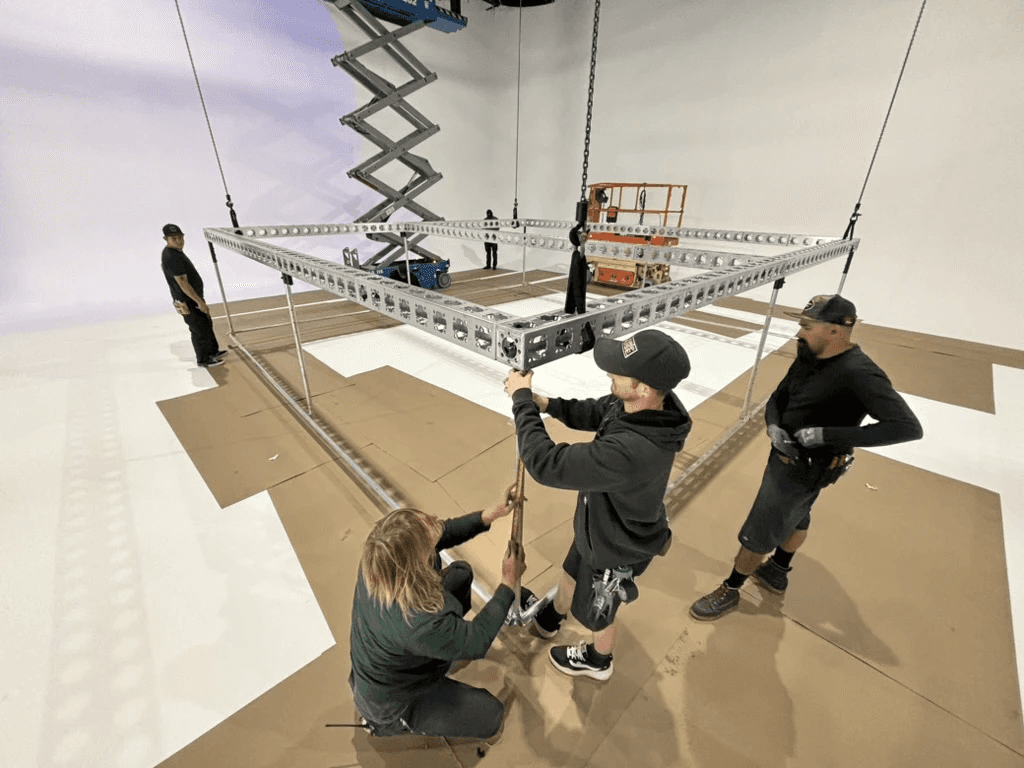

Overhead Rigging
Overhead Rigging
Overhead Rigging

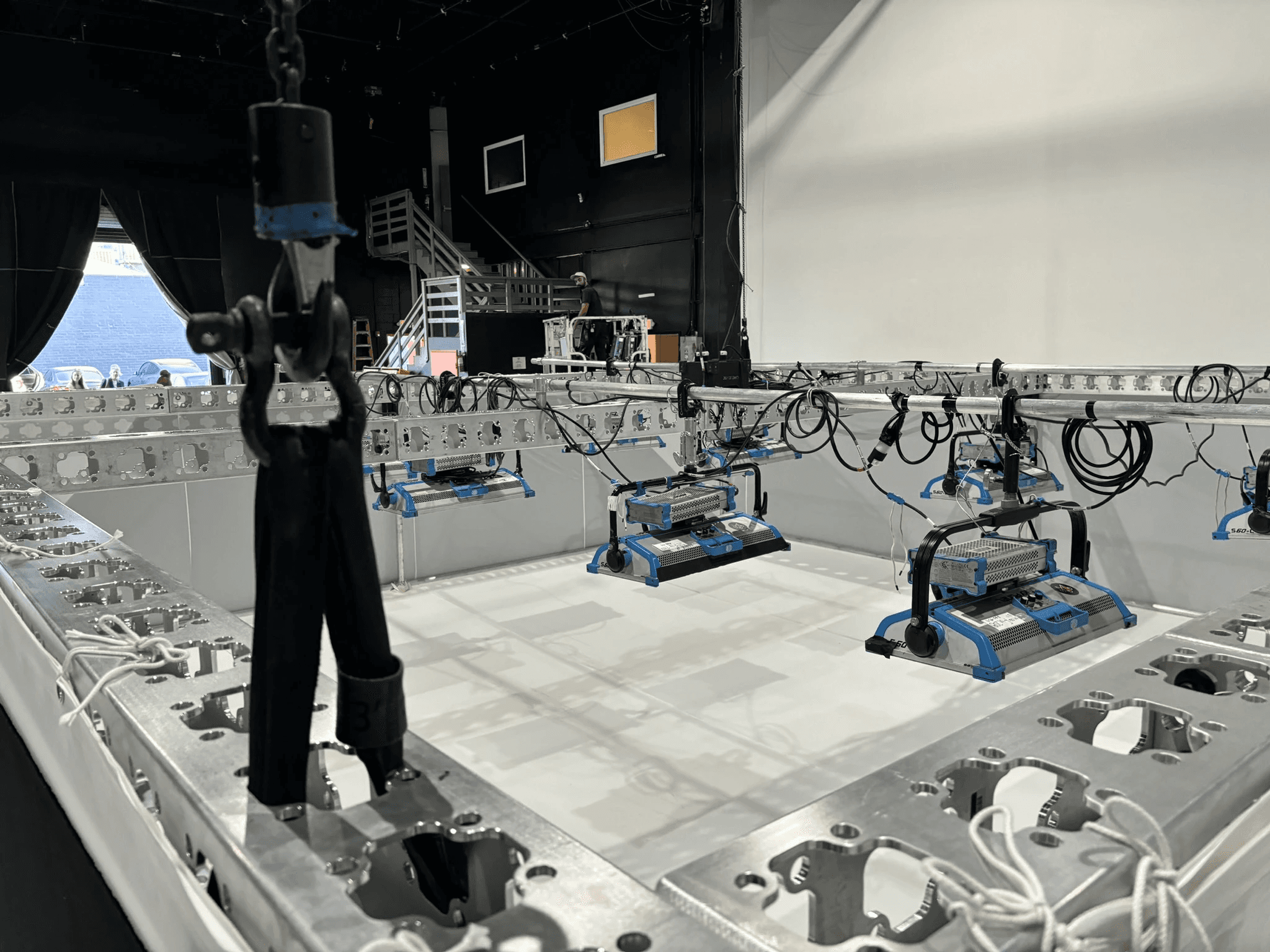

Lighting
Lighting
Lighting
Key Grip
Brendan Riel
the crew
DP: | Zoë Simone-Yi |
Grip Crew: | Logan Alesso, Eric Fowler, Connor Colby, Vic Roca, Daniel Kusenda, Erik Covarrubias, Johnathan Gonzalez, Jacob Senn, DJ Meyer |
built with
LA Rag House
LA Rag House
LA Rag House
Hollaender
Hollaender
Hollaender
Modulus-X™ Truss
Modulus-X™ Truss
Modulus-X™ Truss
Modern Studio Equipment
Modern Studio Equipment
Modern Studio Equipment
by:
Brendan Riel
