Title:

20x20 Telehandler Swatter

Music video

about the project

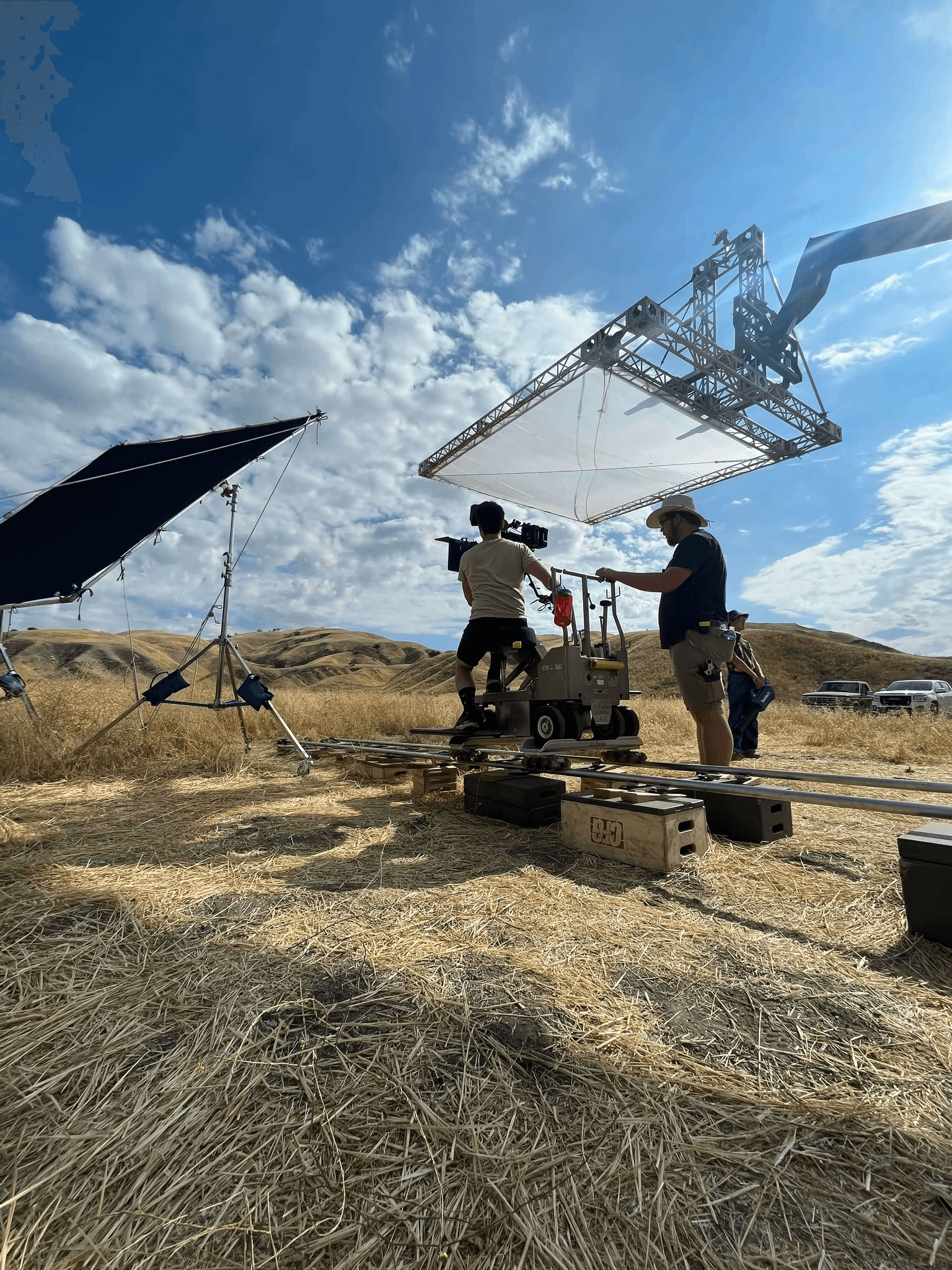

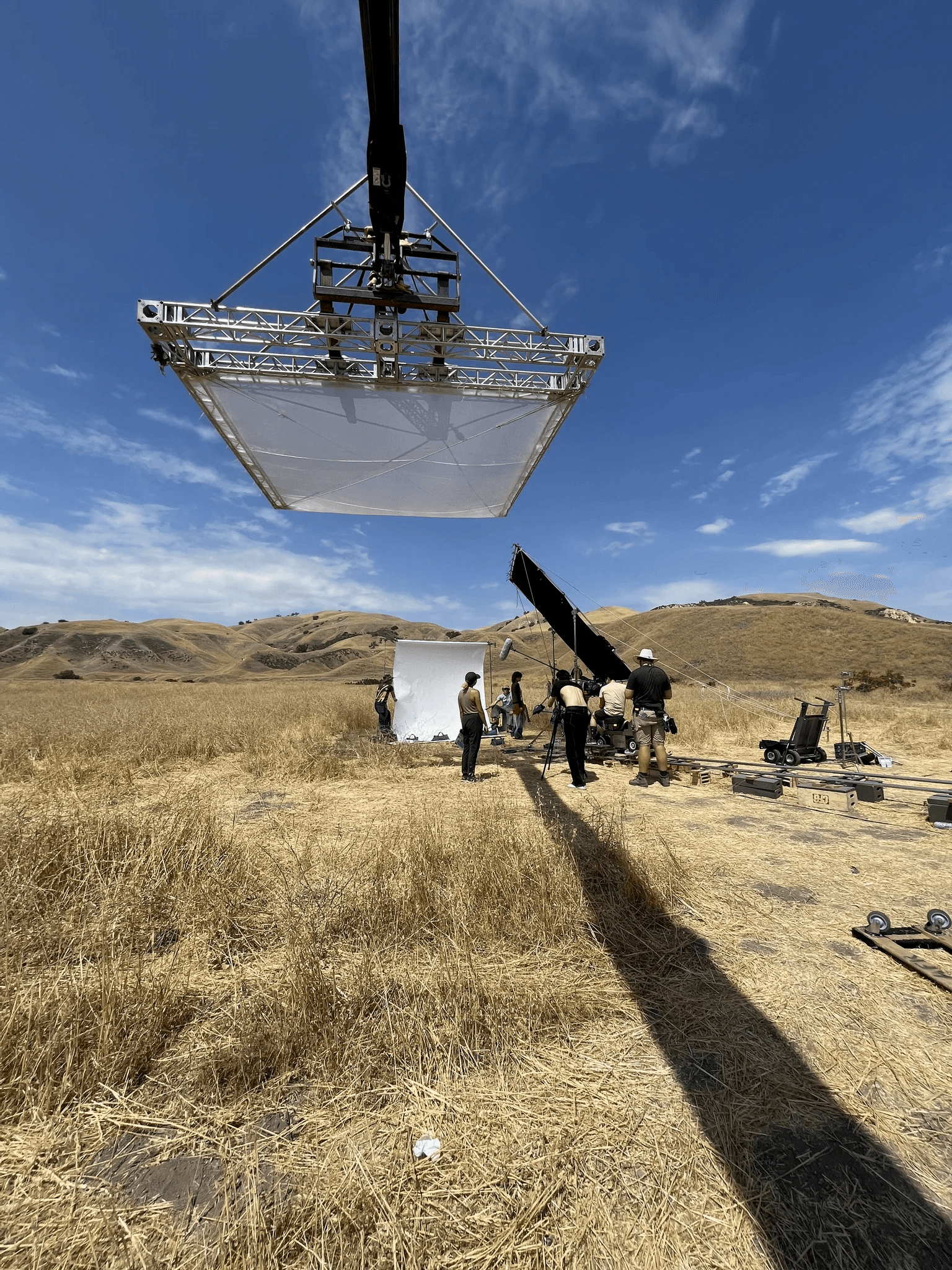

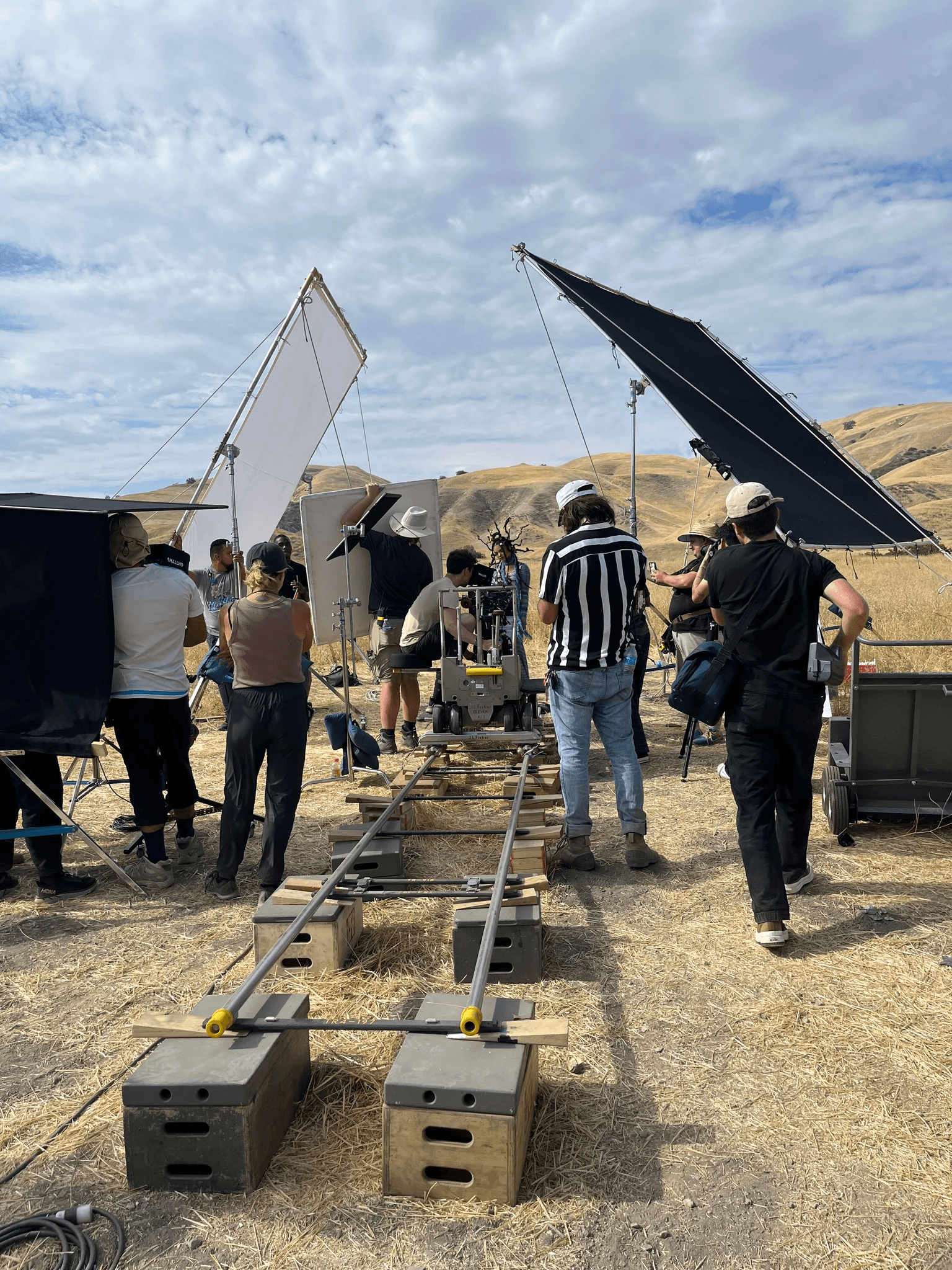

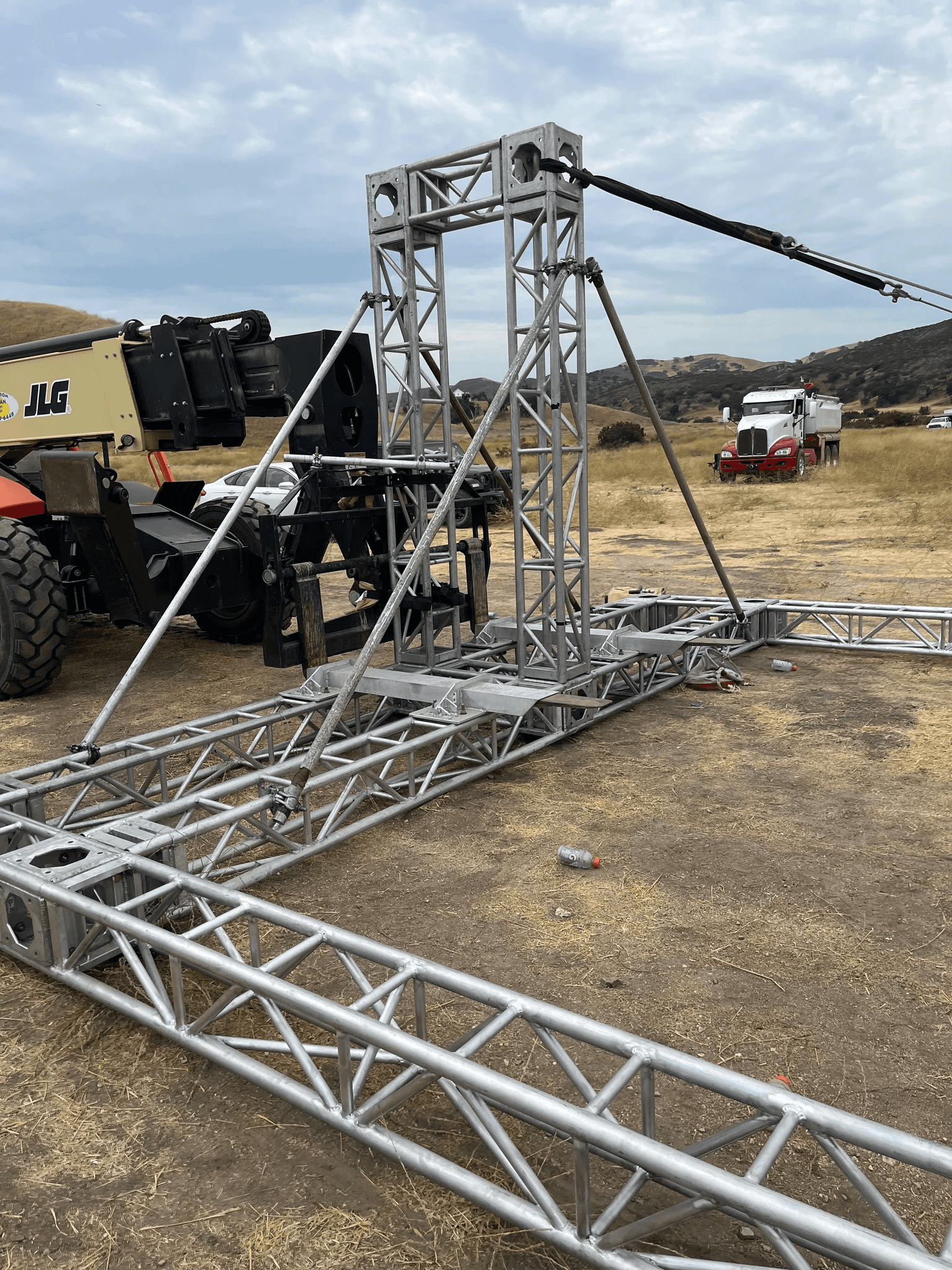

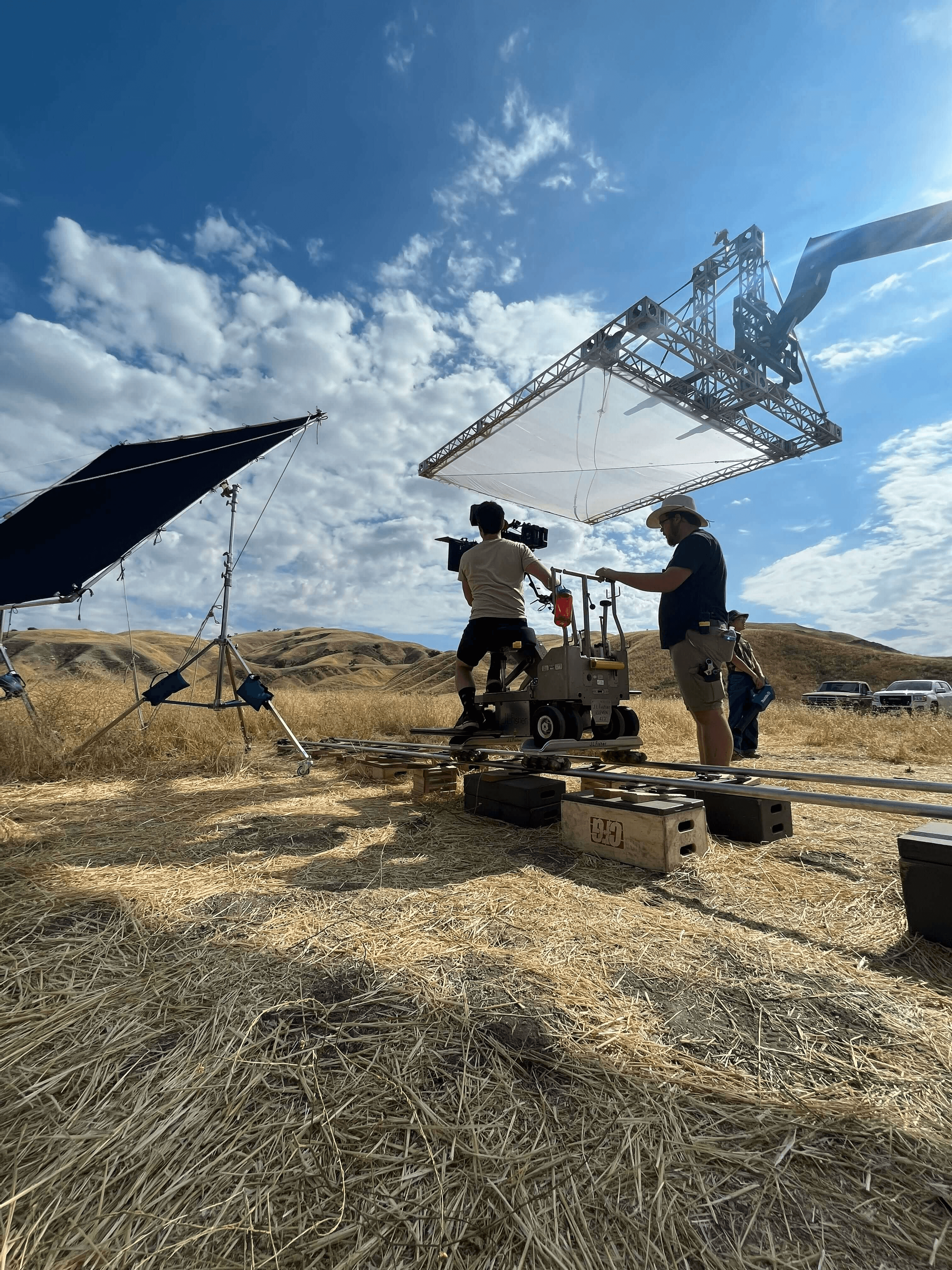

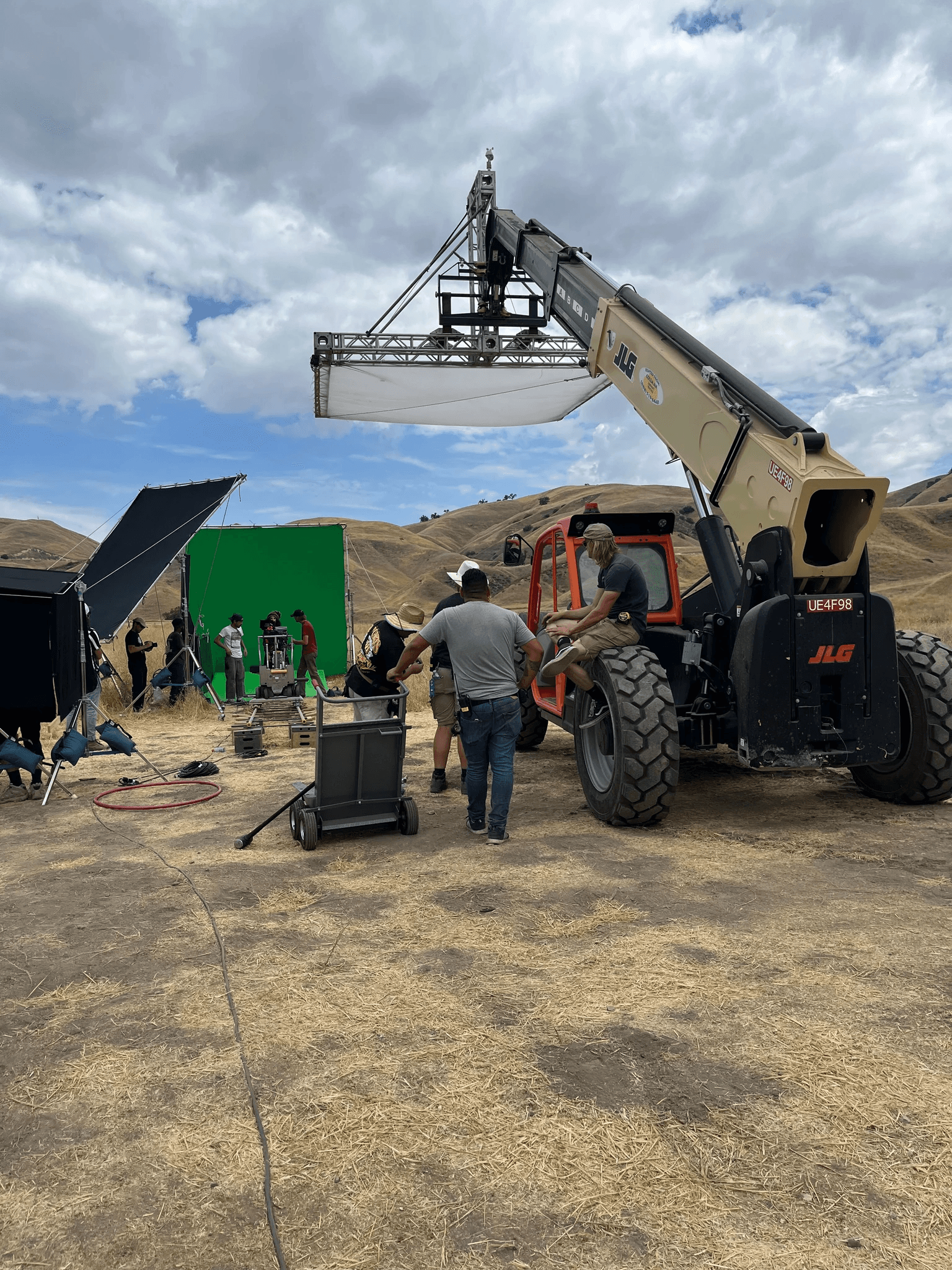

20x20 12” box truss flyswatter on a JLG 1255 telehandler. Ordered the swatter from SGPS Show Rig here in LA. They have a nice little package they send out which ensures you have everything you need. Their custom fork adaptors make assembly and attachment a breeze. Used GAC flex, steel cable, and turnbuckles for the corner picks from the tower. Overhead 20x20 1/2 soft frost diffusion in the swatter did most of the heavy lifting but we shaped up some negative fill on the ground and played around with a 12x green. Finished off the day with some circle track in a field. J.L. Fisher Model 11 was our dolly of choice that day and we opted for skate wheels.

Behind the Scenes

Telehandler Rigging

Lighting

Project role

Key Grip

built with

12” Box Truss

LA Rag House

J.L. Fisher

JLG

by:

Brendan Riel
