Rig Breakdown

Title:

8x8 Softbox / Moonbox on a Gradall

Short film

about the rig

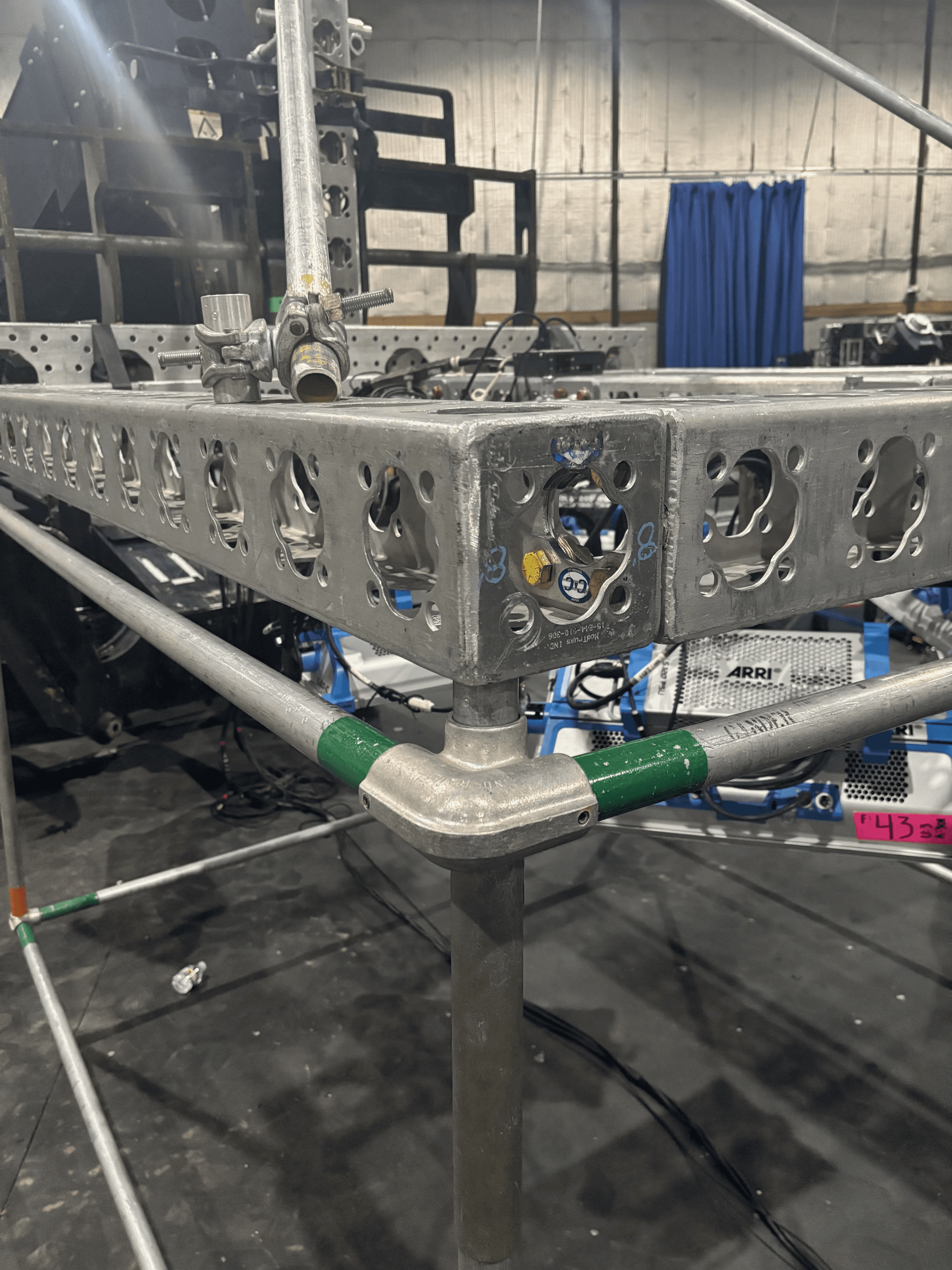

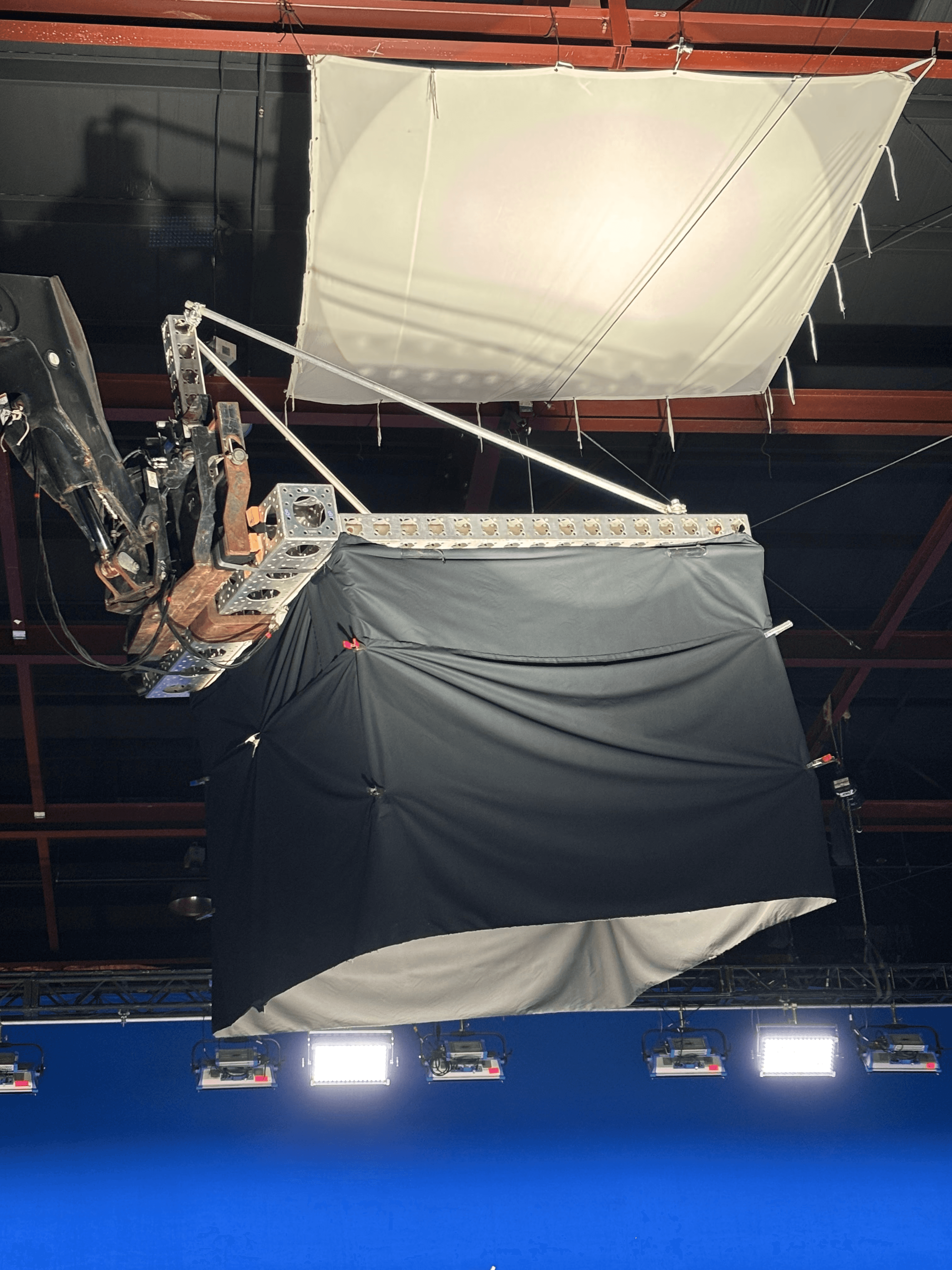

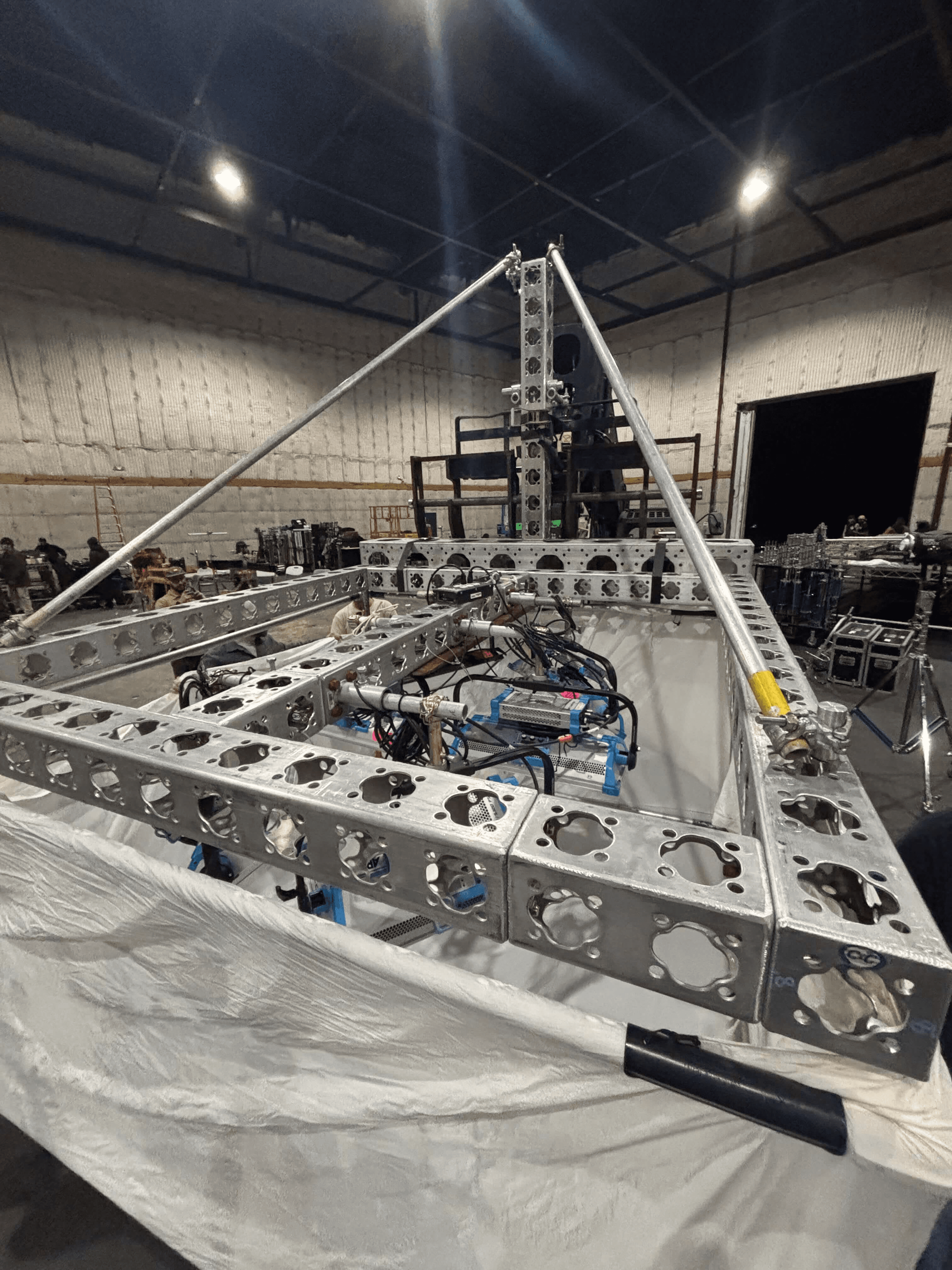

8x8x4 softbox / moon box on a JLG 1255 gradall. Built with ModTruss 6” & 12”. Built the upper skeleton of the box out of 6” and beefed up the carriage attachment points with 12”. 12” vertical allowed for pipe triangulation to the box corners. Strapped it together with 2” ratchet straps, chalked behind the 12” to sit securely against the carriage. Taped the chalks in place to make sure they didn’t fall. Hard mounted SK’s to the carriage and secured to the 12” vertical with short pipe and hollaenders. Diffusion was full grid and box contained 6x Skypanel S60’s. Duve side was removed to turn it into a moon box for some setups.

Behind the Scenes

Telehandler Rigging

Lighting

Key Grip

Brendan Riel

the crew

DP:	Franklin Ricart
Grip Crew:	Carlos Mancilla, Adam Patterson, Bryan Lee, Jim Recznik, Allen Robinson, Lance Flowers, Tim Chapin, Wes Ahl, Paul Yeager, Wes Stanton

built with

Hollaender

Speedrail

ModTruss™

by:

Brendan Riel
