Commercial Beauty Lighting
Commercial
Commercial
Commercial
about the project

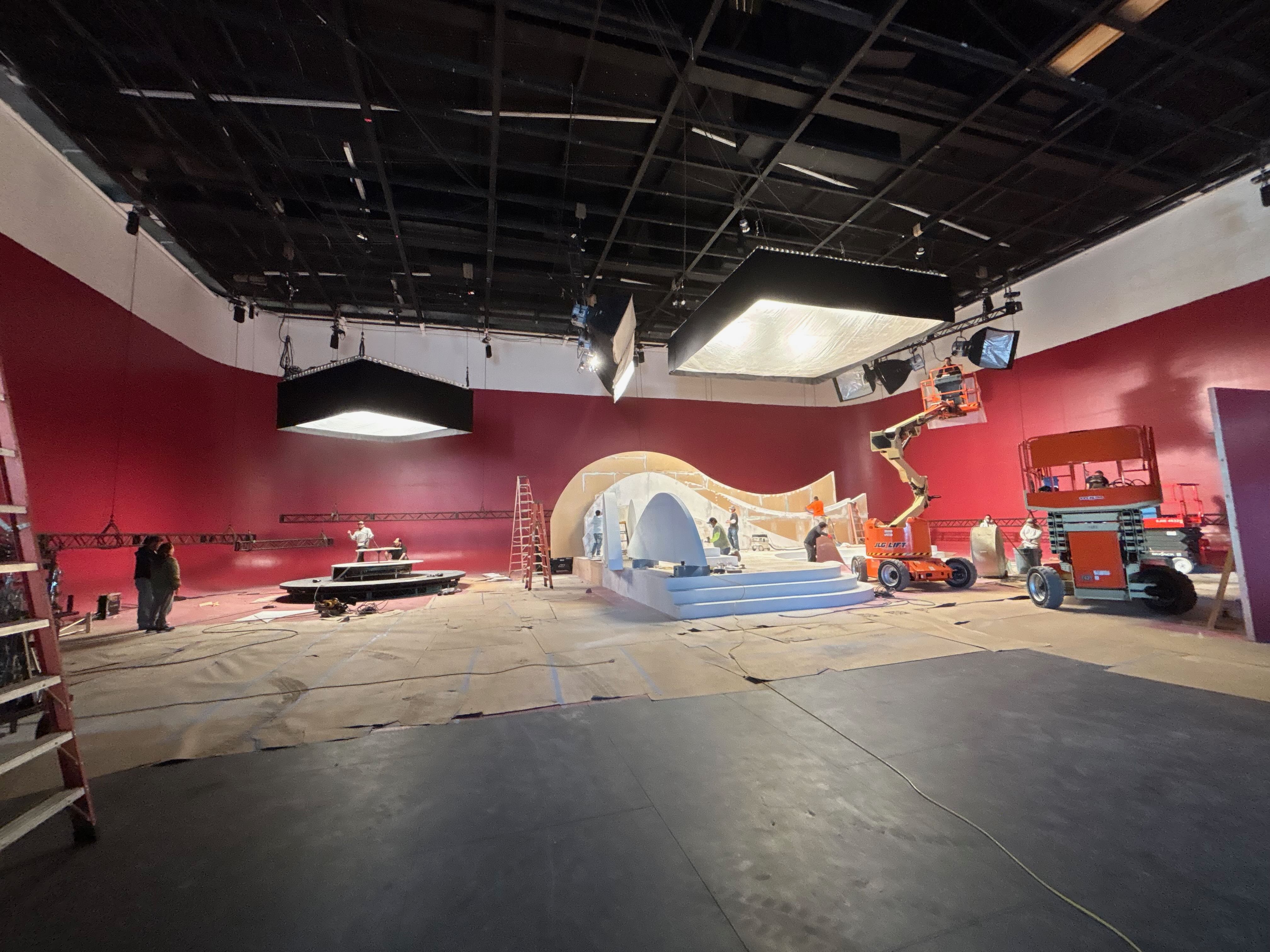

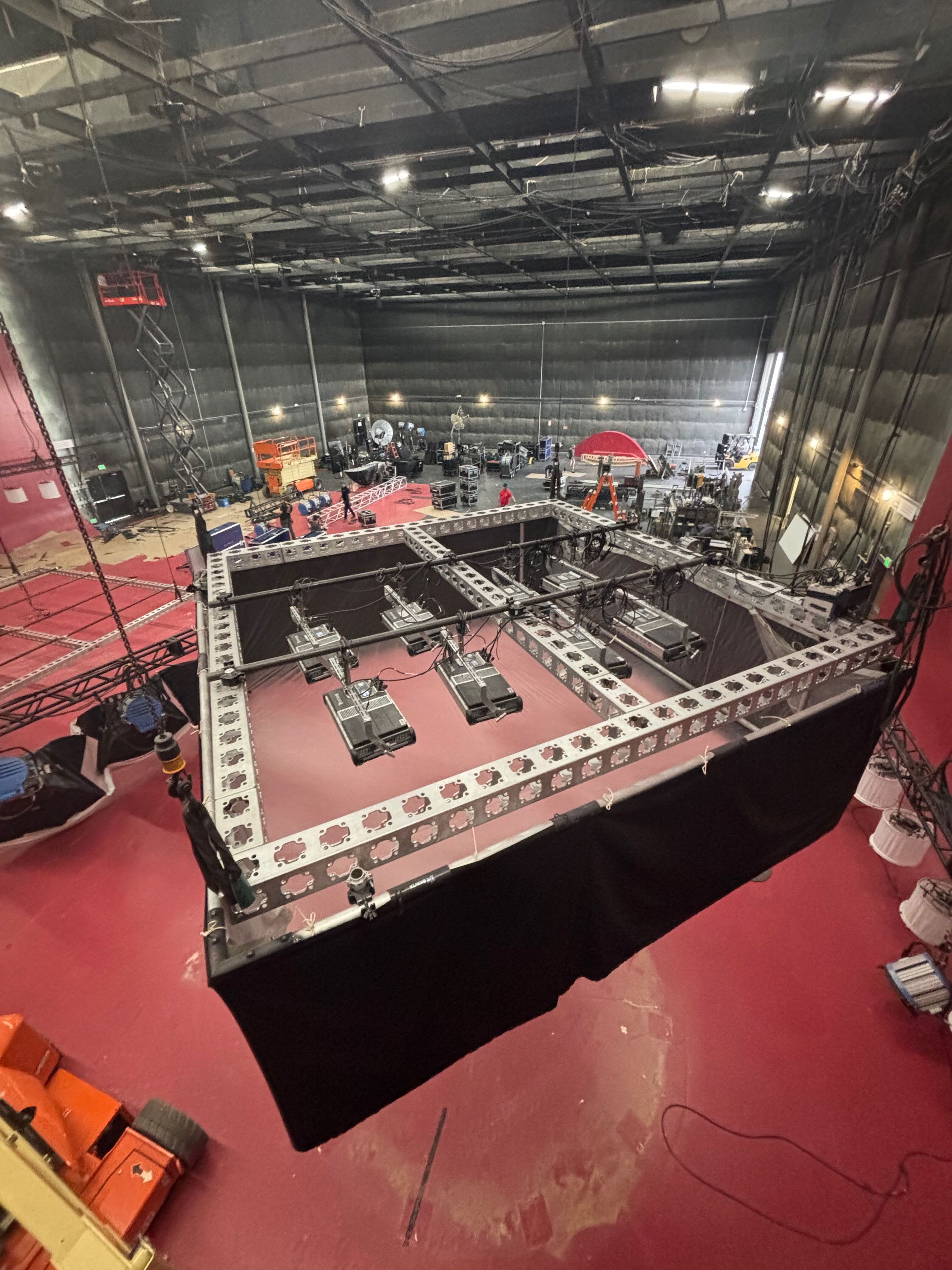

One day to pre-light, one shoot day, and one de-rig day on this beauty commercial. The DP mentioned wanting to bring glow to the skin and sheen to the hair of our models so we opted to go with a mix of softboxes and harder sources to achieve this look. We skinned all units with 1/2 soft frost for this slight bloom and a touch of hardness for the sheen. We had a 12x12 softbox and a 20x20 softbox, both build with Modulus-X and pipe. 12x12 contained 8x Vortex 8's and the 20x20 contained 4x S360's. Briese on a max menace helped provide our frontal key for talent.
Stage Rigging
Stage Rigging
Stage Rigging
Modulus-X™ 6”
Modulus-X™ 6”
Modulus-X™ 6”
Softboxes
Softboxes
Softboxes
Project role
Brendan Riel
built with
Chain Motors
Chain Motors
Chain Motors
Modulus-X™
Modulus-X™
Modulus-X™
Speedrail
Speedrail
Speedrail
by:
Brendan Riel
similar posts
similar posts
rig breakdown
20x20 Flyswatter
by:
Brendan Riel
My standard swatter built. Triangle truss with 1 steel. 8’ verticals for the goalpost with a 5’ horizontal. Wigs from the bucket to the tri truss. Kickers on the goalpost. 20’ kickers from the goalpost to the 20x20 frame. 2x belly lines to finish it off.
rig breakdown
20x20 Flyswatter
by:
Brendan Riel
My standard swatter built. Triangle truss with 1 steel. 8’ verticals for the goalpost with a 5’ horizontal. Wigs from the bucket to the tri truss. Kickers on the goalpost. 20’ kickers from the goalpost to the 20x20 frame. 2x belly lines to finish it off.
rig breakdown
20x20 Flyswatter
by:
Brendan Riel
My standard swatter built. Triangle truss with 1 steel. 8’ verticals for the goalpost with a 5’ horizontal. Wigs from the bucket to the tri truss. Kickers on the goalpost. 20’ kickers from the goalpost to the 20x20 frame. 2x belly lines to finish it off.
rig breakdown
ModX Rolling Soft Toplight
by:
Brendan Riel
We built this mobile toplight softbox using 6" ModX truss to serve four different sets inside a tight studio space with limited overhead clearance. The goal was to keep costs down and avoid building duplicate overhead rigs or ground units for each set. So, we designed a rolling, double-layered softbox that could easily move from set to set—and double as an in-frame ceiling piece when needed.
The structure measured 14’x14’ OD and held two 12x12 frames: one with 1/2 grid and one with bleached muslin. The bleached muz was rigged with a pulley system, allowing us to raise or drop the rag when we needed to bring it into the scene as a ceiling element. We punched LiteTile through both rags for soft, consistent coverage.
For mobility, we mounted the whole rig on C&C Studio Services tri-casters.
rig breakdown
ModX Rolling Soft Toplight
by:
Brendan Riel
We built this mobile toplight softbox using 6" ModX truss to serve four different sets inside a tight studio space with limited overhead clearance. The goal was to keep costs down and avoid building duplicate overhead rigs or ground units for each set. So, we designed a rolling, double-layered softbox that could easily move from set to set—and double as an in-frame ceiling piece when needed.
The structure measured 14’x14’ OD and held two 12x12 frames: one with 1/2 grid and one with bleached muslin. The bleached muz was rigged with a pulley system, allowing us to raise or drop the rag when we needed to bring it into the scene as a ceiling element. We punched LiteTile through both rags for soft, consistent coverage.
For mobility, we mounted the whole rig on C&C Studio Services tri-casters.
rig breakdown
ModX Rolling Soft Toplight
by:
Brendan Riel
We built this mobile toplight softbox using 6" ModX truss to serve four different sets inside a tight studio space with limited overhead clearance. The goal was to keep costs down and avoid building duplicate overhead rigs or ground units for each set. So, we designed a rolling, double-layered softbox that could easily move from set to set—and double as an in-frame ceiling piece when needed.
The structure measured 14’x14’ OD and held two 12x12 frames: one with 1/2 grid and one with bleached muslin. The bleached muz was rigged with a pulley system, allowing us to raise or drop the rag when we needed to bring it into the scene as a ceiling element. We punched LiteTile through both rags for soft, consistent coverage.
For mobility, we mounted the whole rig on C&C Studio Services tri-casters.
