Rig Breakdown
Title:
Title:
Dolly ModX Camera Push

Commercial

Commercial

Commercial
about the rig

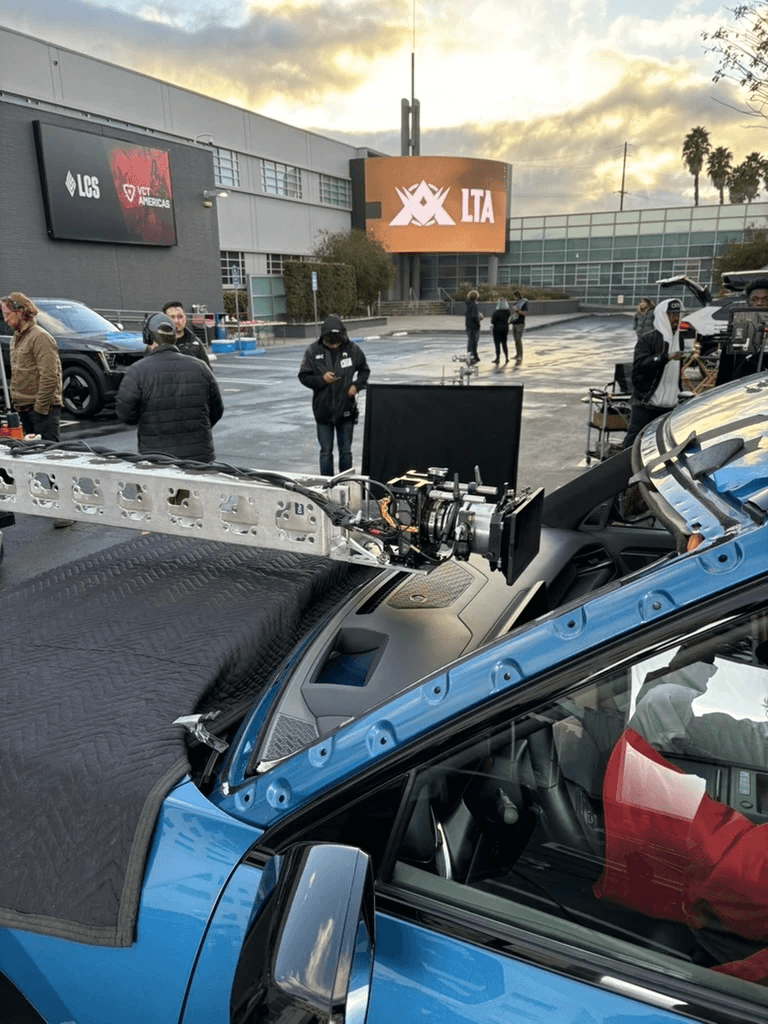

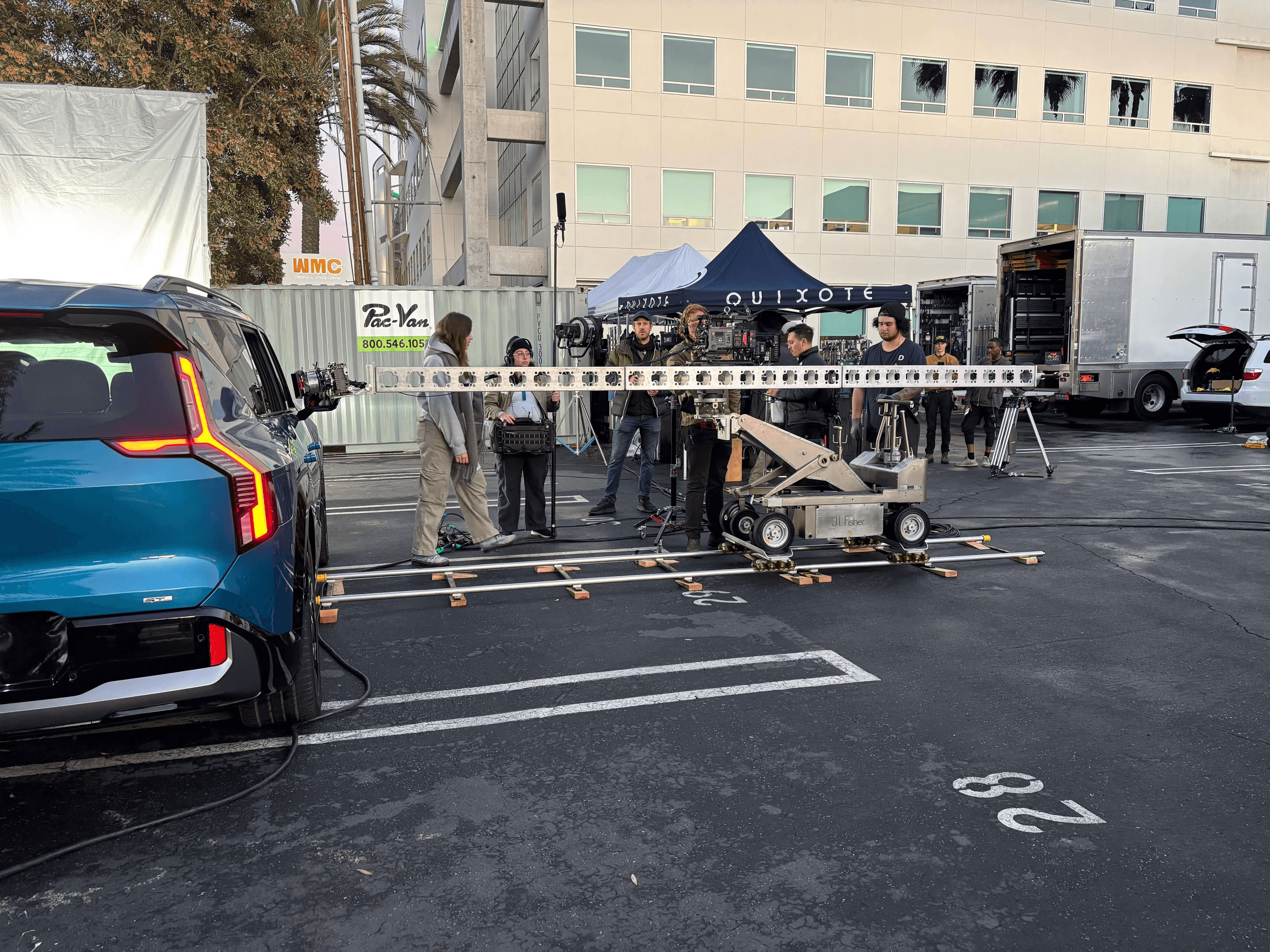

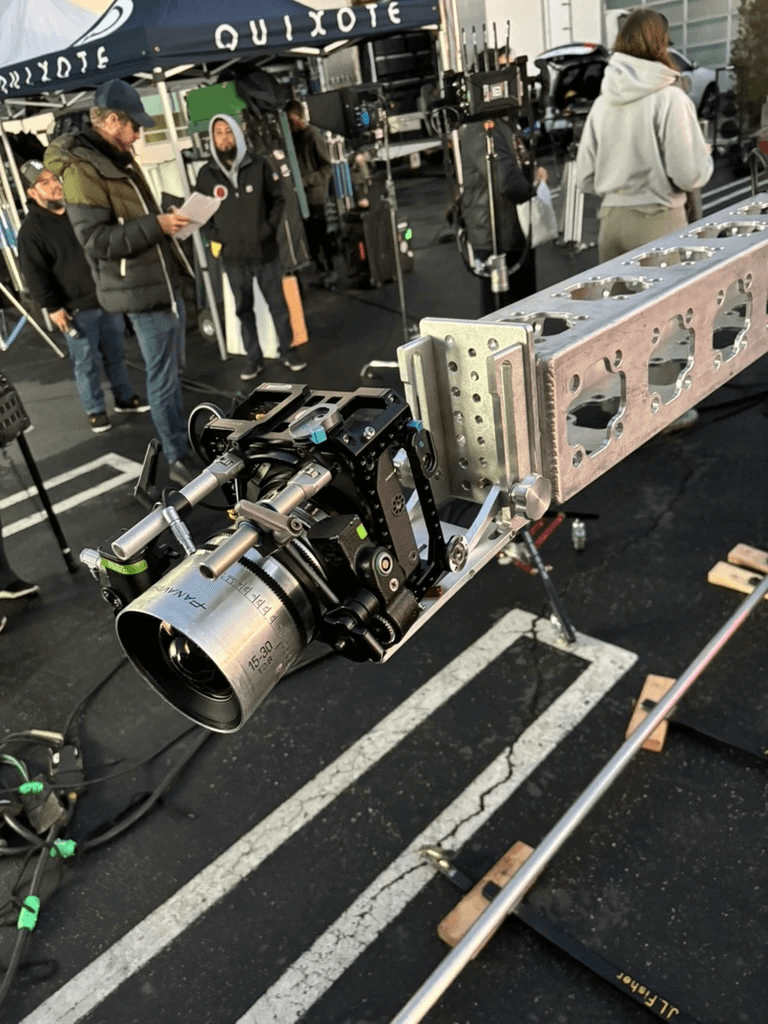

Modulus-X offset dolly rig for pushing through car windshields and windows. Ran 12’ off the front and 8’ off the back. On the nose is a wedge plate with a dovetail to keep the rialto body super low profile. This is the dummy method where the tilt and pan are fixed. Mounted the venice body to the arm 9’ back and used minimal counterweight in the back. Truss and ModParts from Division.
Camera Rigging
Camera Rigging
Camera Rigging
Camera Movement
Camera Movement
Camera Movement
Key Grip
Brendan Riel
the crew
DP: | Ryan Spacone |
Grip Crew: | Connor Colby, Jordan Hodges, DJ Meyer |









built with
Fisher Model 10
Fisher Model 10
Fisher Model 10
Mx|66|
Mx|66|
Mx|66|
Modulus-X™ Truss
Modulus-X™ Truss
Modulus-X™ Truss
Modern Studio Equipment
Modern Studio Equipment
Modern Studio Equipment



by:
Brendan Riel
