Hard Mount Car Rig

car rig on yellow car

Commercial

·

f

e

a

t

u

r

e

d

r

i

g

·

f

e

a

t

u

r

e

d

r

i

g

car rig on yellow car

Commercial

·

f

e

a

t

u

r

e

d

r

i

g

·

f

e

a

t

u

r

e

d

r

i

g

car rig on yellow car

Commercial

·

f

e

a

t

u

r

e

d

r

i

g

·

f

e

a

t

u

r

e

d

r

i

g

about the rig

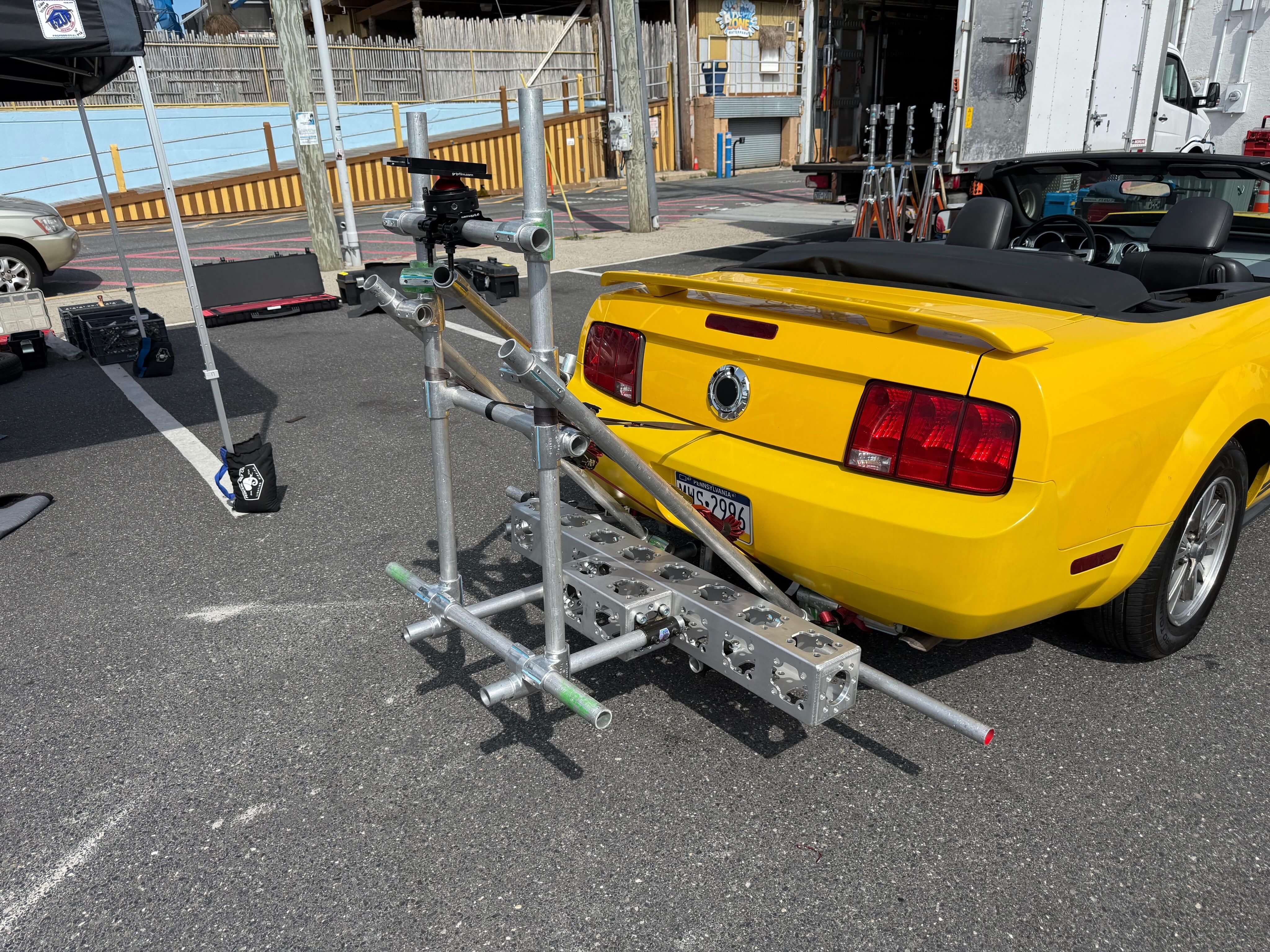

Hard mounts underneath the rear of this vehicle provided secure points for this rig. ModX was integrated for stability and as a platform for the block battery. Uprights were triangulated back to the rig, a ratchet was added to keep the rig in tension and prevent wobble, and the rig was triangulated to an independent body point with a suction cup.

Car rigging

Car rigging

Car rigging

Hard Mount

Hard Mount

Hard Mount

Key Grip

Federal Grip Co

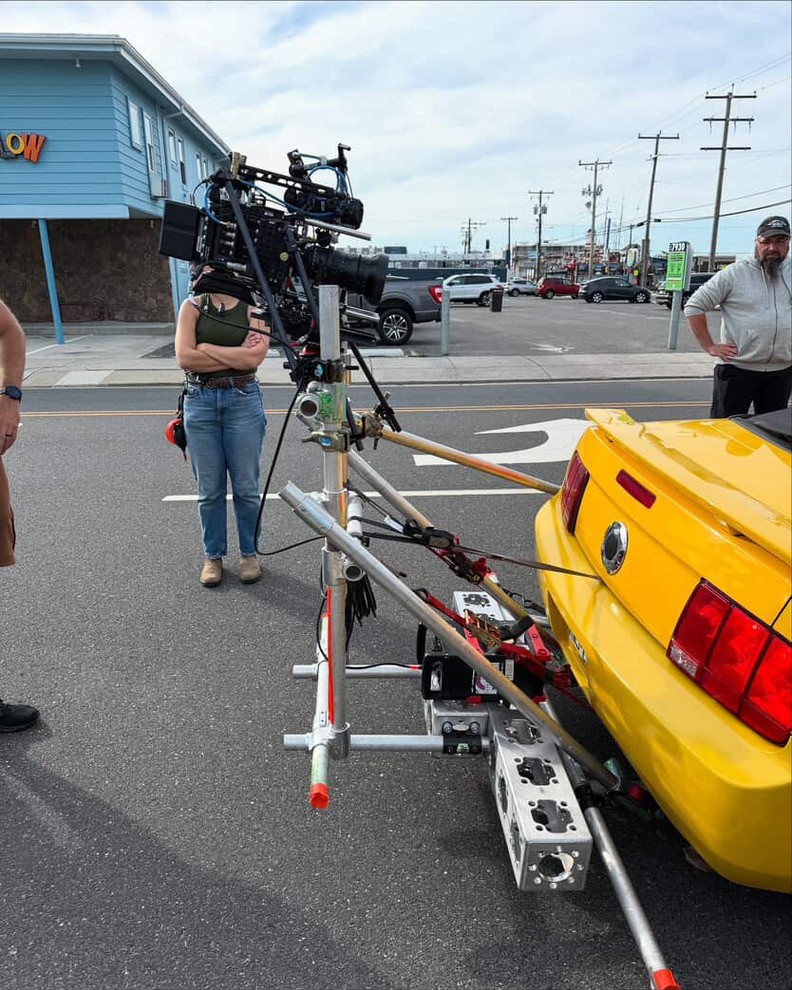

modx and pipe car rig on yellow car
modx and pipe car rig on yellow car
modx and pipe car rig on yellow car

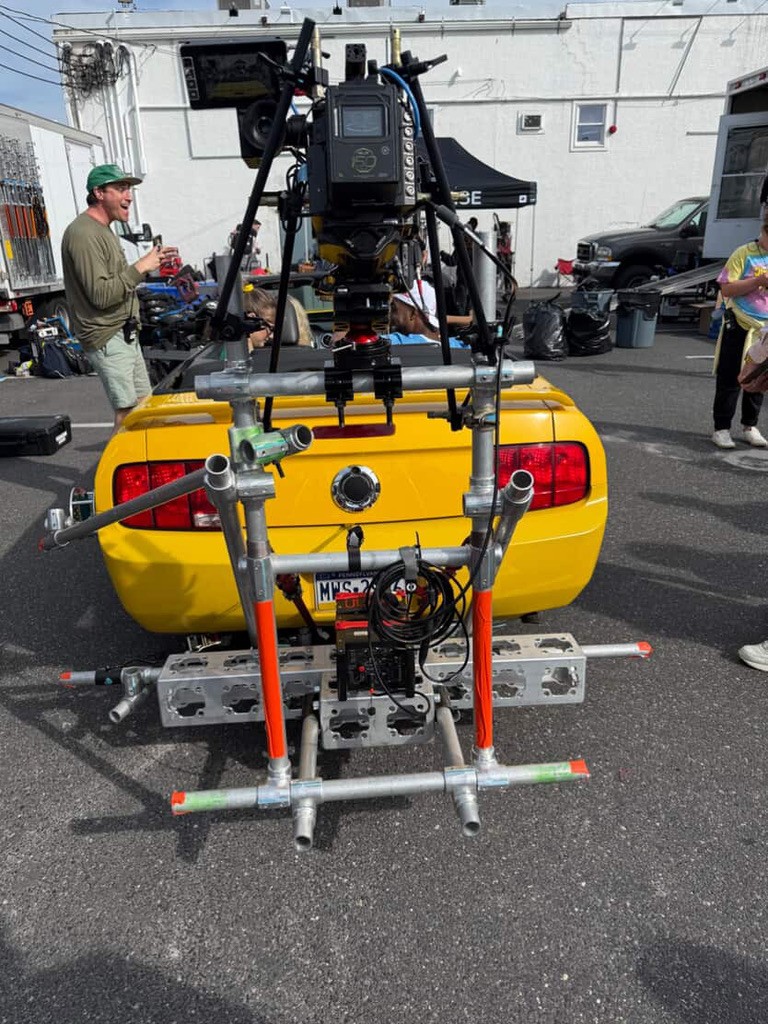

hard mount car rig on yellow car
hard mount car rig on yellow car
hard mount car rig on yellow car

built with

Gripfilm

Gripfilm

Gripfilm

Suction Cups

Suction Cups

Suction Cups

Modulus-X™

Modulus-X™

Modulus-X™

Hollaender

Hollaender

Hollaender

Speedrail

Speedrail

Speedrail

by:

Legacy Grip
