Mountain Bike Camera Rig
Commercial
Commercial
Commercial
about the rig

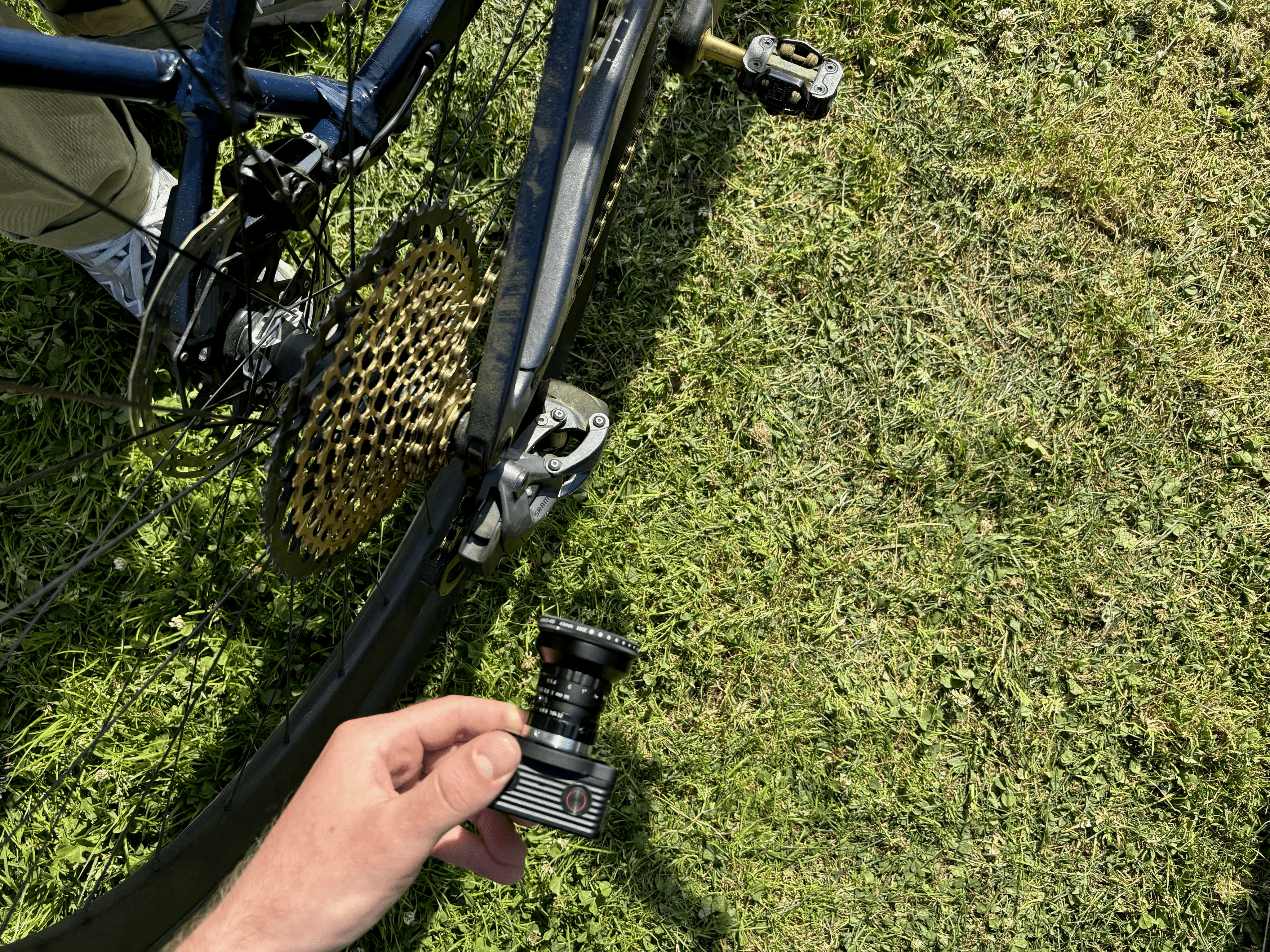

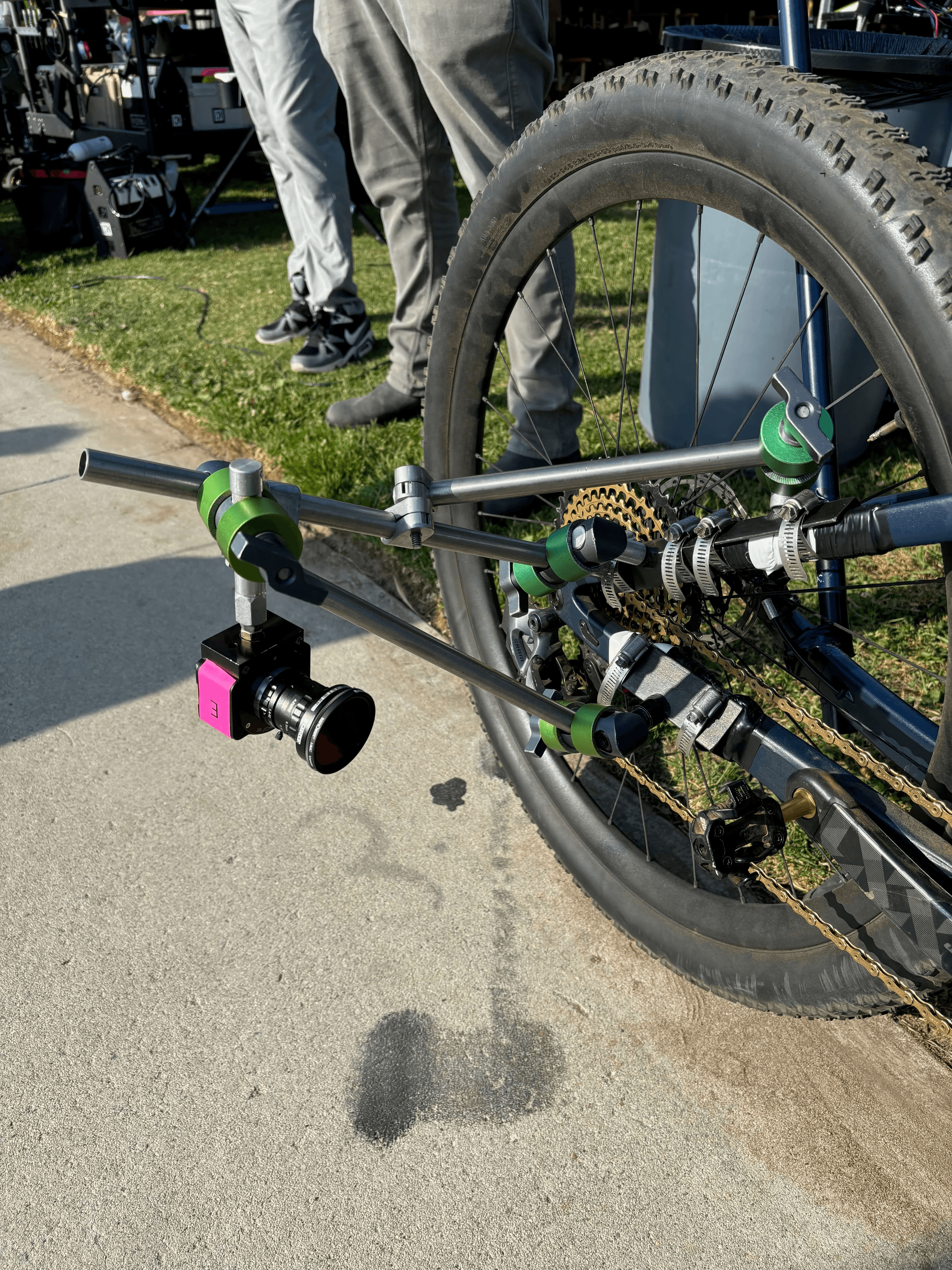

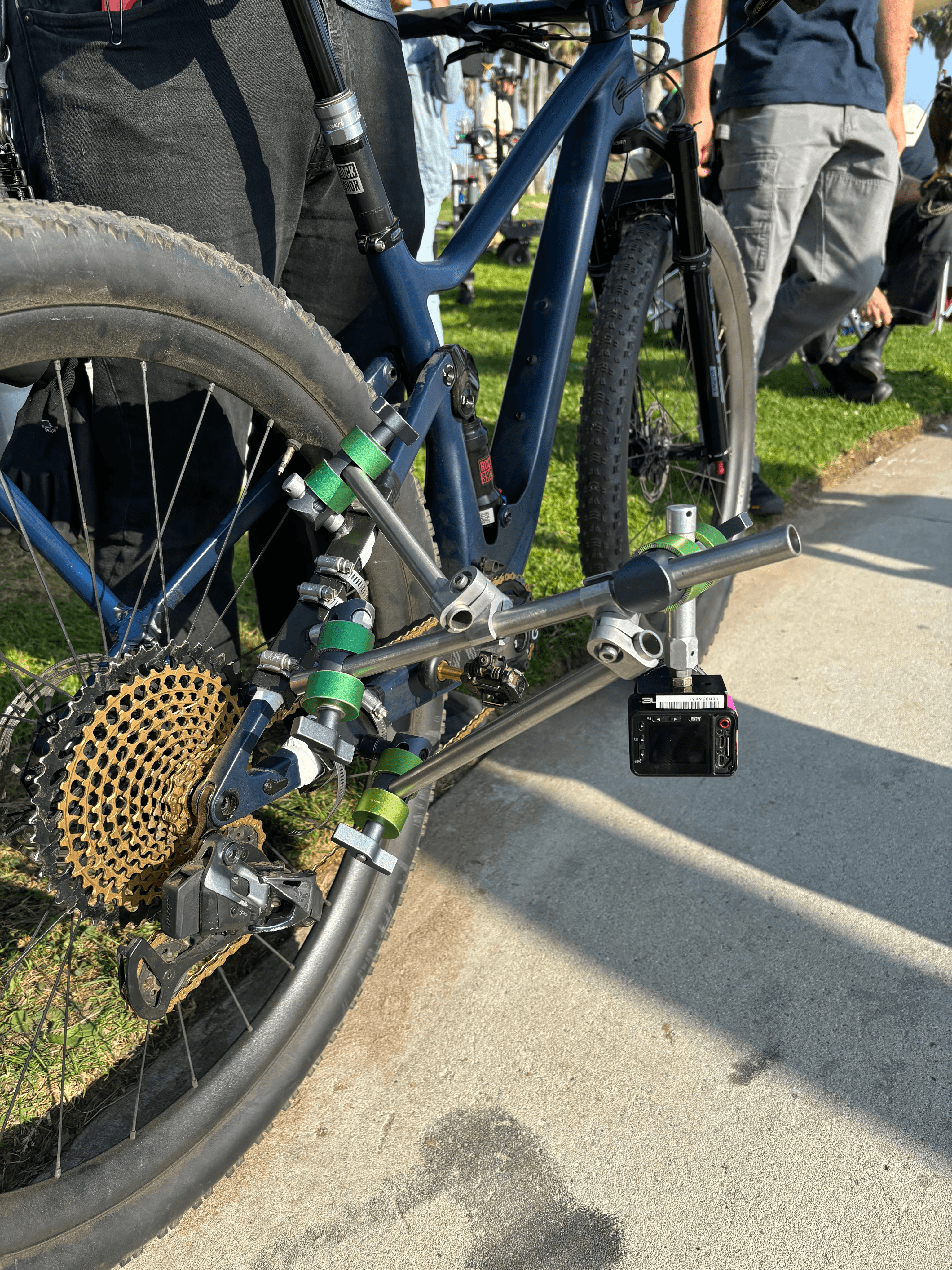

Sony RXO II mounted to a mountain bike. This bike flew down the mountain at Griffith Park. Couldn’t use any form of attachment that would fall off easily such as a cardellini. Those and other type of hand tightening clamps loosen up over time with vibration. We opted instead to go with hose clamps. Mounted small bicycle starters (I see where they get their name now) to the frame and made sure to protect the bike. Made sure all rigging was out of the way of the pedal and foot motion and triangulated the crap out of it.
Behind the Scenes
Behind the Scenes
Behind the Scenes
Camera Rigging
Camera Rigging
Camera Rigging
Grip Equipment
Grip Equipment
Grip Equipment
Bicycle Starters
Bicycle Starters
Bicycle Starters
Hose Clamps
Hose Clamps
Hose Clamps
Key Grip
Brendan Riel
the crew
DP: | Cory Burmester |
Grip Crew: | Vic Roca, Kyle Sorvig, Jordan Hodges, Ezra Graye, Owen Migel, Eric Fowler |
built with
5/8” Rods & Hardware
5/8” Rods & Hardware
5/8” Rods & Hardware
9. Solutions
9. Solutions
9. Solutions
Modern Studio Equipment
Modern Studio Equipment
Modern Studio Equipment
by:
Brendan Riel
