Rig Breakdown
Title:
Title:
Par Can Condor Rig
Other
Other
Other
about the rig

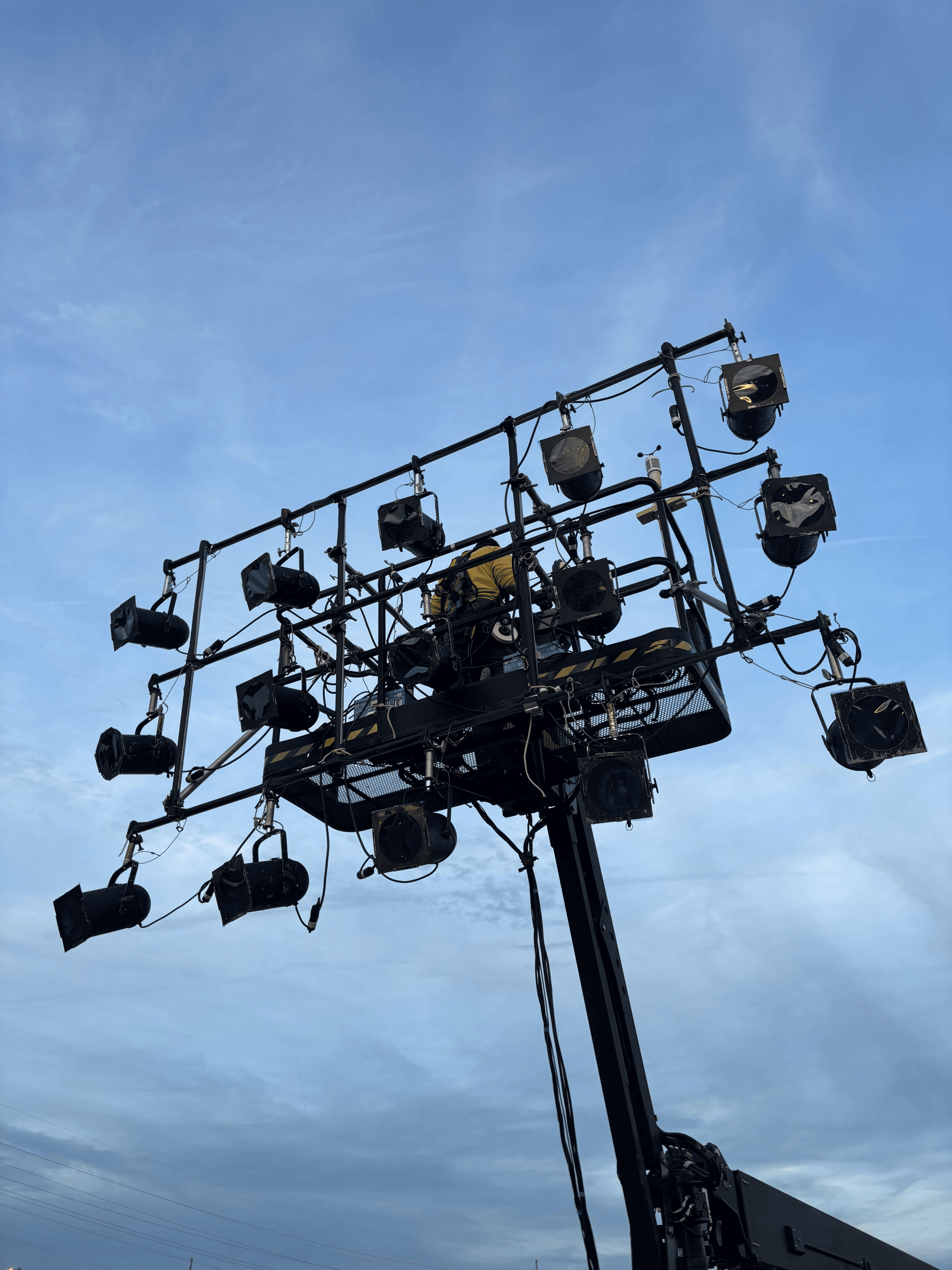

Par can array rigged to a JLG 1250AJP. 3 rows of 5 par cans each, spaced out 33” apart. Uniformed height and width distances for a balanced look. This lighting apparatus played in shot and was meant to simulate a fictional ship yard practical. Frame built out of 1-1/4” speedrail and attached to the basket with steel pipe. Hollaenders for the frame connection points and cheeseboros for the condor connection points. Kickers on the ends added more rigidity and safety.

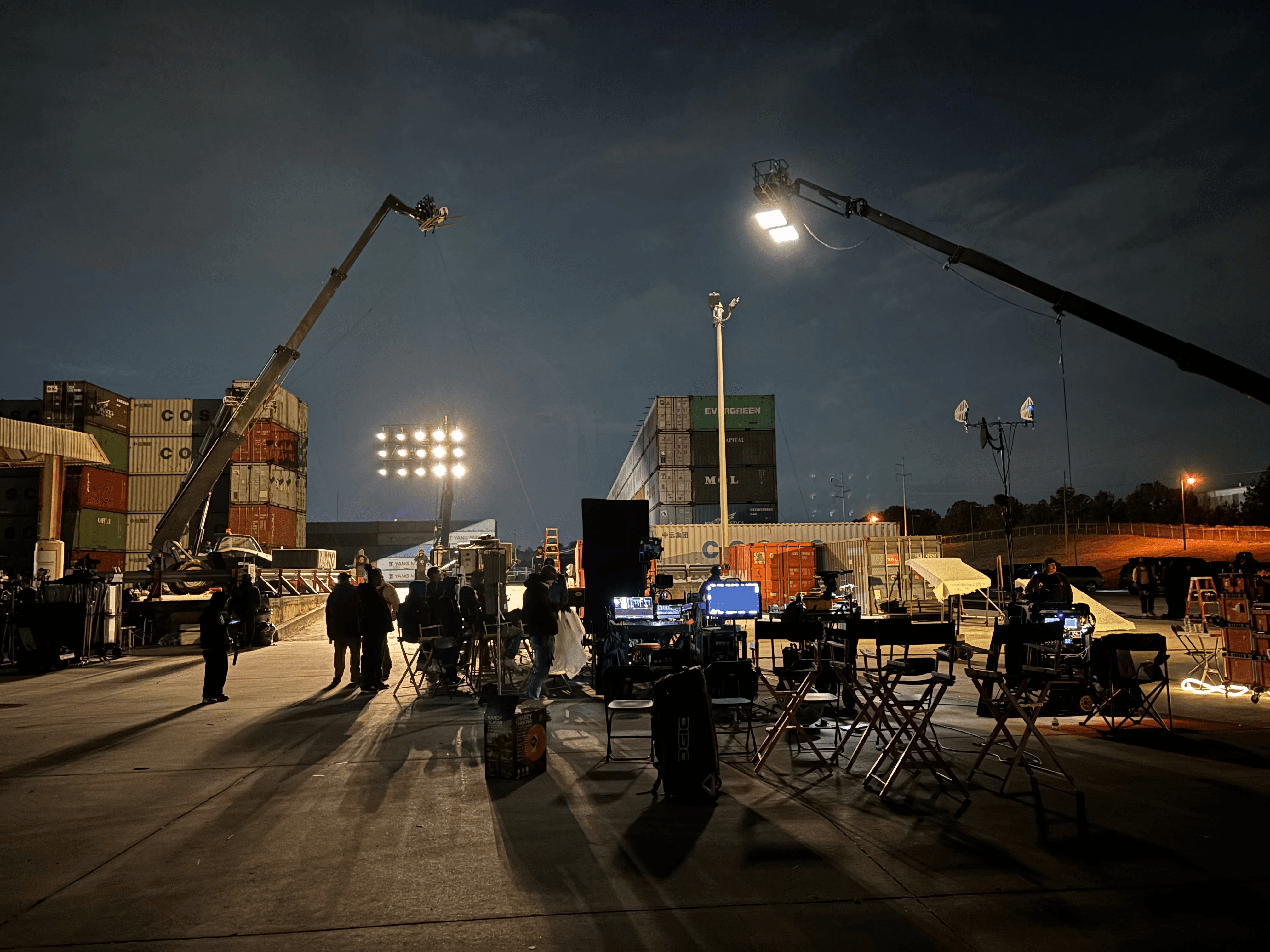

Behind the Scenes
Behind the Scenes
Behind the Scenes

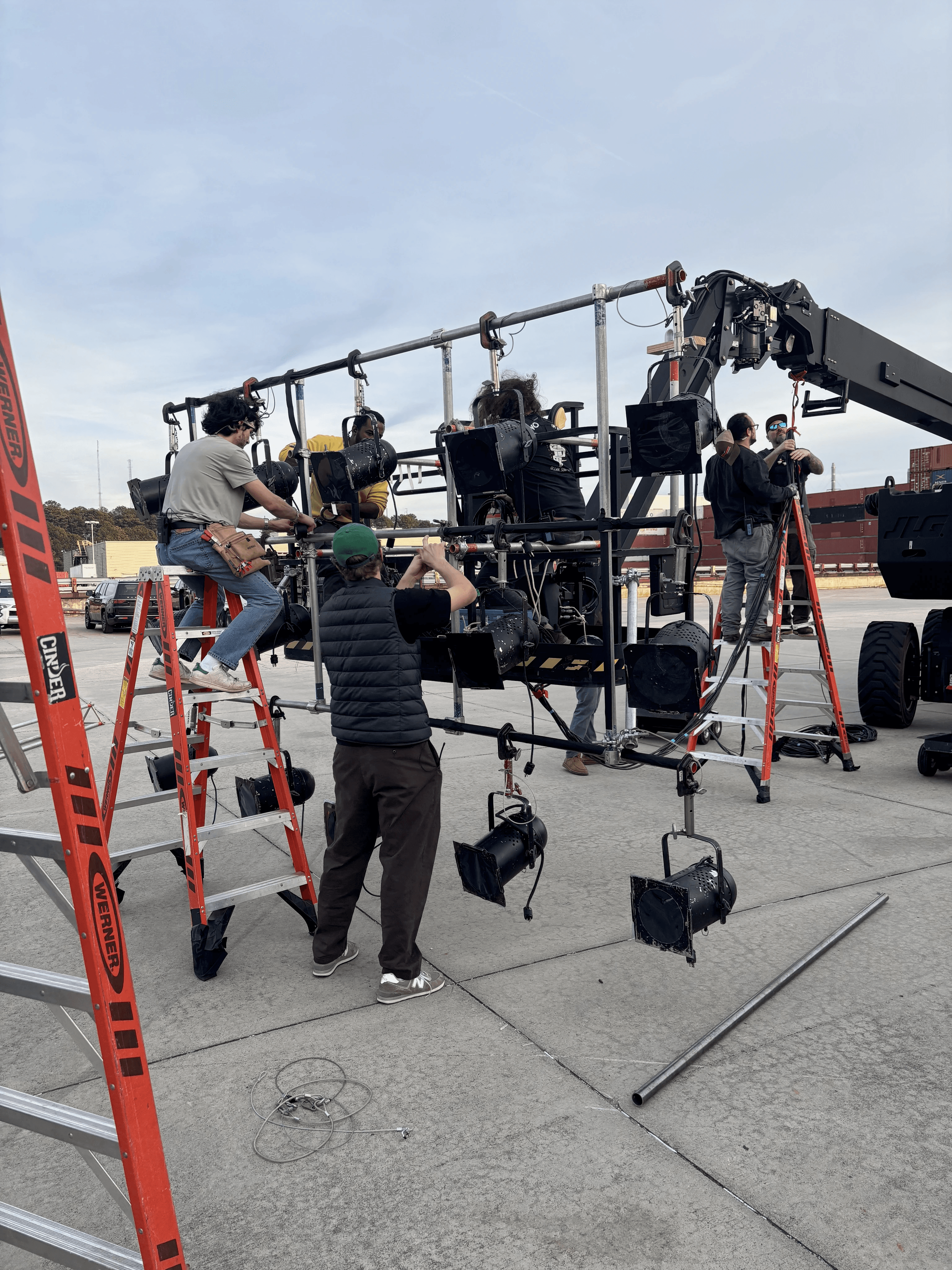

Condor Rigging
Condor Rigging
Condor Rigging
Cheeseboros
Cheeseboros
Cheeseboros
Key Grip
Brendan Riel
the crew
DP: | Franklin Ricart |
Grip Crew: | Carlos Mancilla, Adam Patterson, Bryan Lee, Jim Recznik, Allen Robinson, Lance Flowers, Tim Chapin, Wes Ahl, Paul Yeager, Wes Stanton |
built with
Hollaender
Hollaender
Hollaender
Speedrail
Speedrail
Speedrail
by:
Brendan Riel
similar posts
similar posts
rig breakdown
20x20 Flyswatter
by:
Brendan Riel
My standard swatter built. Triangle truss with 1 steel. 8’ verticals for the goalpost with a 5’ horizontal. Wigs from the bucket to the tri truss. Kickers on the goalpost. 20’ kickers from the goalpost to the 20x20 frame. 2x belly lines to finish it off.
rig breakdown
20x20 Flyswatter
by:
Brendan Riel
My standard swatter built. Triangle truss with 1 steel. 8’ verticals for the goalpost with a 5’ horizontal. Wigs from the bucket to the tri truss. Kickers on the goalpost. 20’ kickers from the goalpost to the 20x20 frame. 2x belly lines to finish it off.
rig breakdown
20x20 Flyswatter
by:
Brendan Riel
My standard swatter built. Triangle truss with 1 steel. 8’ verticals for the goalpost with a 5’ horizontal. Wigs from the bucket to the tri truss. Kickers on the goalpost. 20’ kickers from the goalpost to the 20x20 frame. 2x belly lines to finish it off.
rig breakdown
ModX Rolling Soft Toplight
by:
Brendan Riel
We built this mobile toplight softbox using 6" ModX truss to serve four different sets inside a tight studio space with limited overhead clearance. The goal was to keep costs down and avoid building duplicate overhead rigs or ground units for each set. So, we designed a rolling, double-layered softbox that could easily move from set to set—and double as an in-frame ceiling piece when needed.
The structure measured 14’x14’ OD and held two 12x12 frames: one with 1/2 grid and one with bleached muslin. The bleached muz was rigged with a pulley system, allowing us to raise or drop the rag when we needed to bring it into the scene as a ceiling element. We punched LiteTile through both rags for soft, consistent coverage.
For mobility, we mounted the whole rig on C&C Studio Services tri-casters.
rig breakdown
ModX Rolling Soft Toplight
by:
Brendan Riel
We built this mobile toplight softbox using 6" ModX truss to serve four different sets inside a tight studio space with limited overhead clearance. The goal was to keep costs down and avoid building duplicate overhead rigs or ground units for each set. So, we designed a rolling, double-layered softbox that could easily move from set to set—and double as an in-frame ceiling piece when needed.
The structure measured 14’x14’ OD and held two 12x12 frames: one with 1/2 grid and one with bleached muslin. The bleached muz was rigged with a pulley system, allowing us to raise or drop the rag when we needed to bring it into the scene as a ceiling element. We punched LiteTile through both rags for soft, consistent coverage.
For mobility, we mounted the whole rig on C&C Studio Services tri-casters.
rig breakdown
ModX Rolling Soft Toplight
by:
Brendan Riel
We built this mobile toplight softbox using 6" ModX truss to serve four different sets inside a tight studio space with limited overhead clearance. The goal was to keep costs down and avoid building duplicate overhead rigs or ground units for each set. So, we designed a rolling, double-layered softbox that could easily move from set to set—and double as an in-frame ceiling piece when needed.
The structure measured 14’x14’ OD and held two 12x12 frames: one with 1/2 grid and one with bleached muslin. The bleached muz was rigged with a pulley system, allowing us to raise or drop the rag when we needed to bring it into the scene as a ceiling element. We punched LiteTile through both rags for soft, consistent coverage.
For mobility, we mounted the whole rig on C&C Studio Services tri-casters.
