STAGE SHOOT WITH MOTORS & BLUE SCREEN
Commercial
Commercial
Commercial
about the project

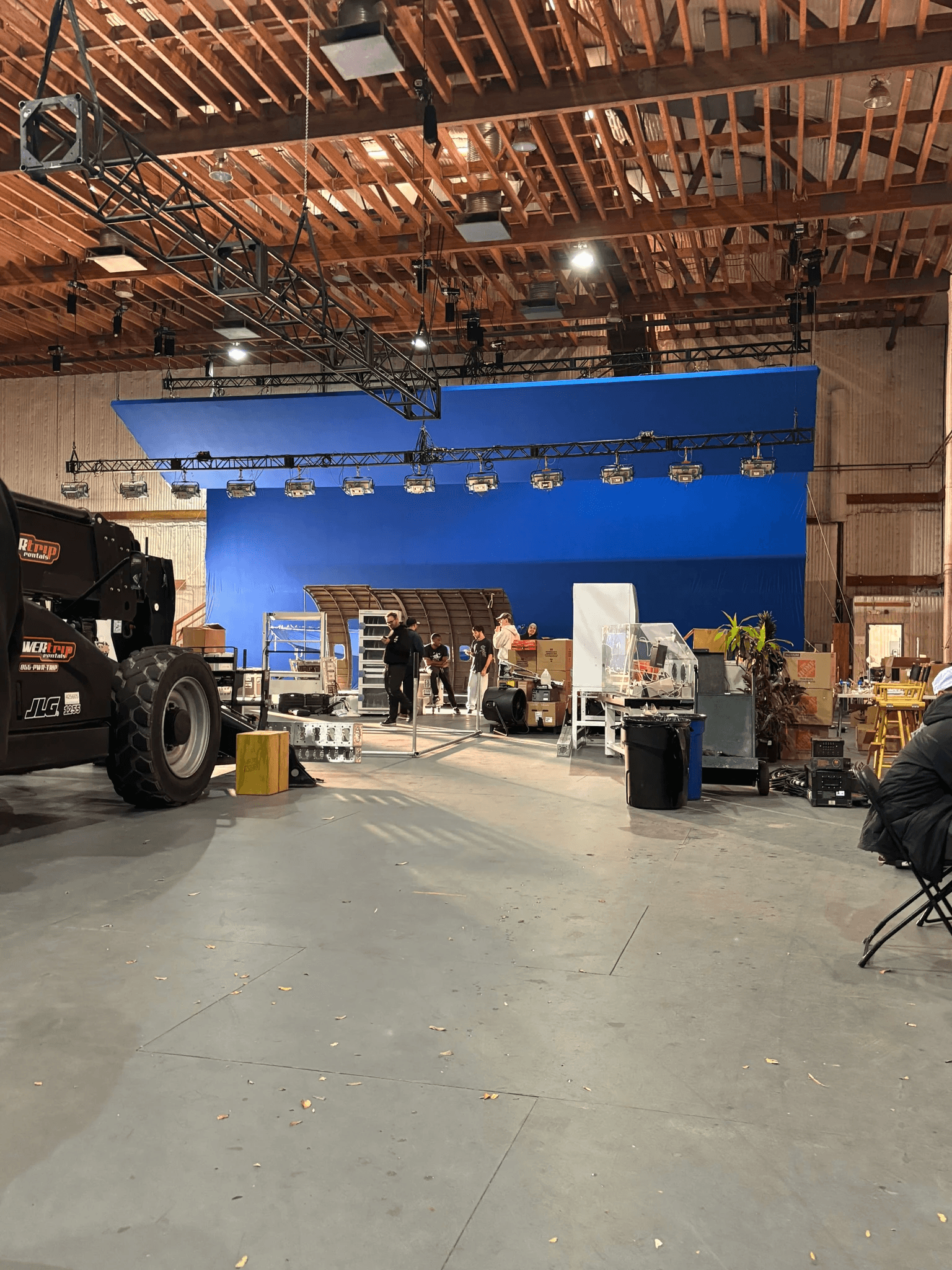

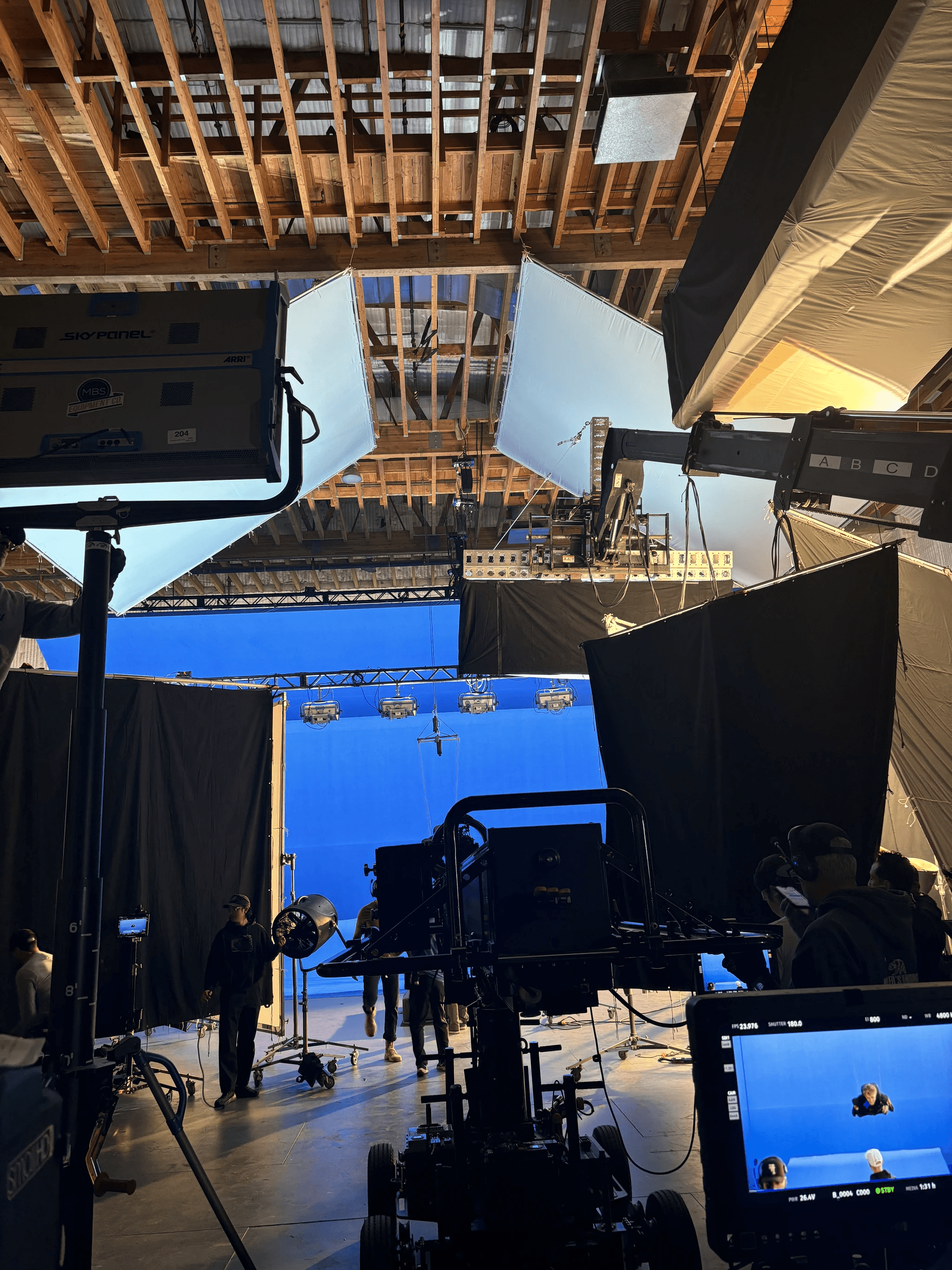

Stage shoot with 34 motors and 7 different sets. Day and a half of pre-rigging and 4 days of shooting. Grip crew ran 8 deep for most of the shoot and we brought in an additional 5 for the wrap day to get out that night. Our main setups consisted of a 30x60 blue screen with a custom flying 12x60 mod-x angled blue frame for low shot coverage, a 12x12 softbox on a telehandler, and an 8x30 softbox among many other things. Gaffer Eddie Reid laid out the plan to execute DP Franklin Ricart’s vision.

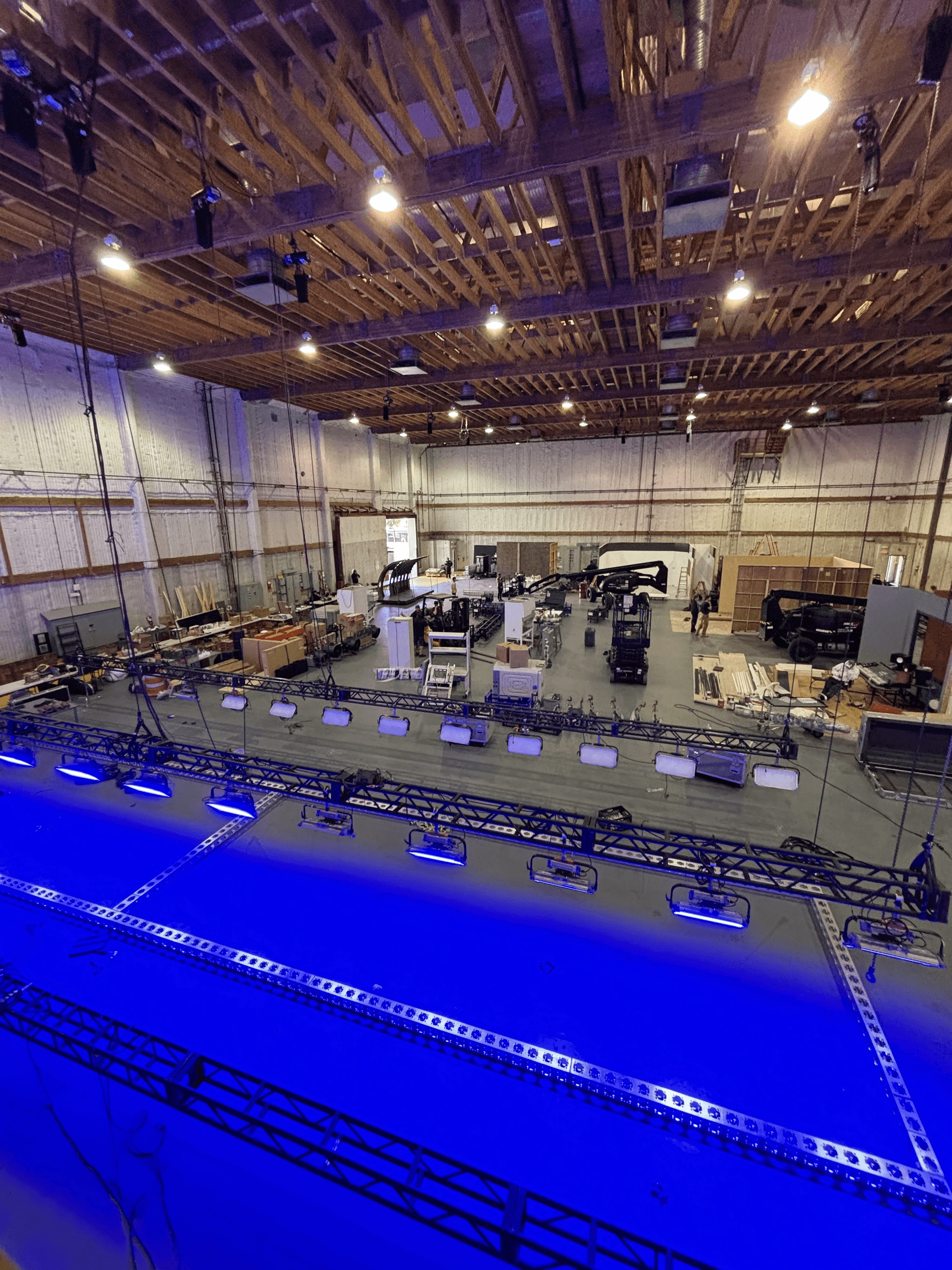

Overhead Rigging
Overhead Rigging
Overhead Rigging

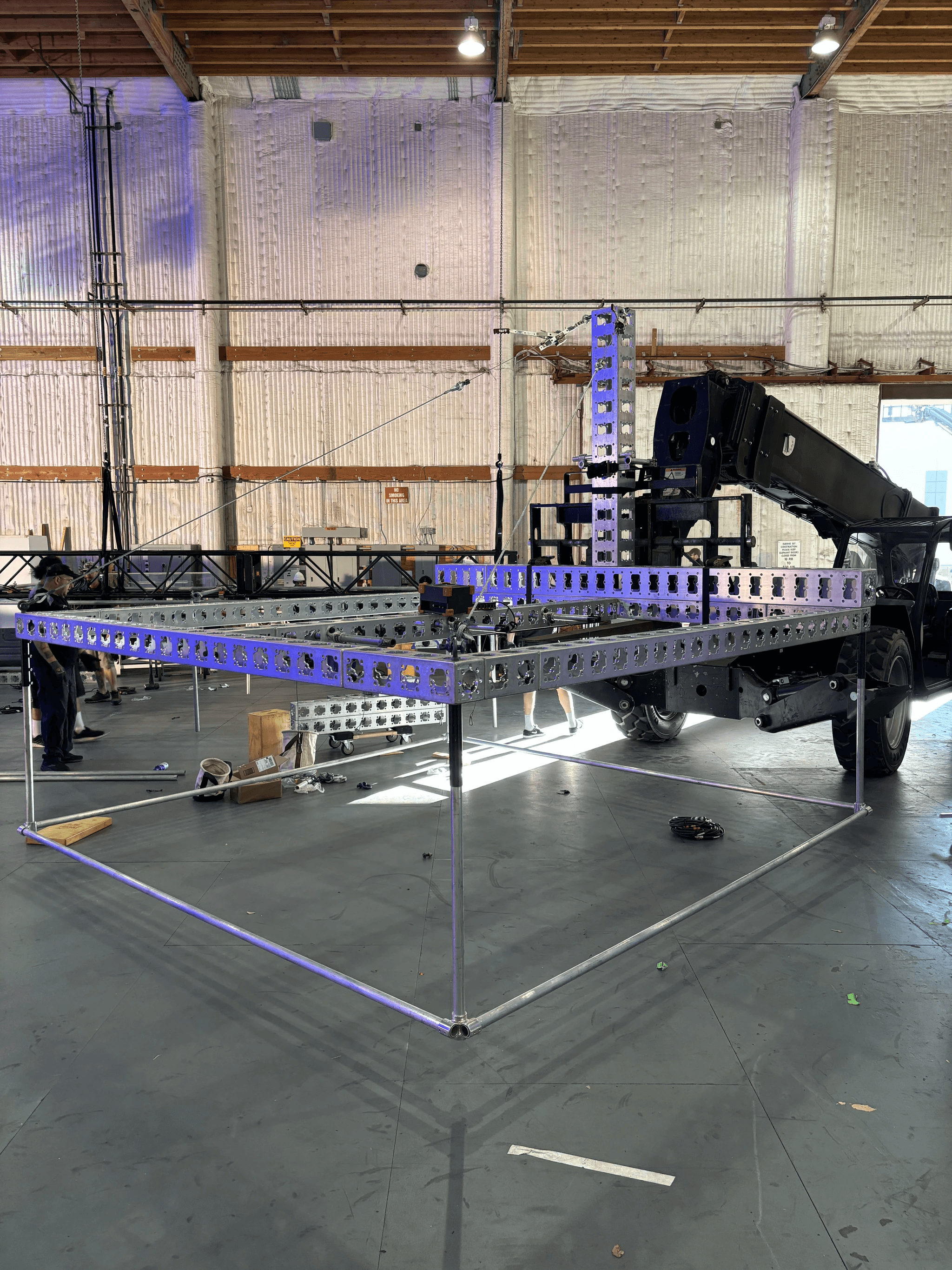

Telehandler Rigging
Telehandler Rigging
Telehandler Rigging
Condor Rigging
Condor Rigging
Condor Rigging
Project role
Key Grip
built with
Chain Motors
Chain Motors
Chain Motors
XSF Truss
XSF Truss
XSF Truss
Modulus-X™ Truss
Modulus-X™ Truss
Modulus-X™ Truss
by:
Brendan Riel
similar posts
similar posts
rig breakdown
20x20 Flyswatter
by:
Brendan Riel
My standard swatter built. Triangle truss with 1 steel. 8’ verticals for the goalpost with a 5’ horizontal. Wigs from the bucket to the tri truss. Kickers on the goalpost. 20’ kickers from the goalpost to the 20x20 frame. 2x belly lines to finish it off.
rig breakdown
20x20 Flyswatter
by:
Brendan Riel
My standard swatter built. Triangle truss with 1 steel. 8’ verticals for the goalpost with a 5’ horizontal. Wigs from the bucket to the tri truss. Kickers on the goalpost. 20’ kickers from the goalpost to the 20x20 frame. 2x belly lines to finish it off.
rig breakdown
20x20 Flyswatter
by:
Brendan Riel
My standard swatter built. Triangle truss with 1 steel. 8’ verticals for the goalpost with a 5’ horizontal. Wigs from the bucket to the tri truss. Kickers on the goalpost. 20’ kickers from the goalpost to the 20x20 frame. 2x belly lines to finish it off.
rig breakdown
ModX Rolling Soft Toplight
by:
Brendan Riel
We built this mobile toplight softbox using 6" ModX truss to serve four different sets inside a tight studio space with limited overhead clearance. The goal was to keep costs down and avoid building duplicate overhead rigs or ground units for each set. So, we designed a rolling, double-layered softbox that could easily move from set to set—and double as an in-frame ceiling piece when needed.
The structure measured 14’x14’ OD and held two 12x12 frames: one with 1/2 grid and one with bleached muslin. The bleached muz was rigged with a pulley system, allowing us to raise or drop the rag when we needed to bring it into the scene as a ceiling element. We punched LiteTile through both rags for soft, consistent coverage.
For mobility, we mounted the whole rig on C&C Studio Services tri-casters.
rig breakdown
ModX Rolling Soft Toplight
by:
Brendan Riel
We built this mobile toplight softbox using 6" ModX truss to serve four different sets inside a tight studio space with limited overhead clearance. The goal was to keep costs down and avoid building duplicate overhead rigs or ground units for each set. So, we designed a rolling, double-layered softbox that could easily move from set to set—and double as an in-frame ceiling piece when needed.
The structure measured 14’x14’ OD and held two 12x12 frames: one with 1/2 grid and one with bleached muslin. The bleached muz was rigged with a pulley system, allowing us to raise or drop the rag when we needed to bring it into the scene as a ceiling element. We punched LiteTile through both rags for soft, consistent coverage.
For mobility, we mounted the whole rig on C&C Studio Services tri-casters.
rig breakdown
ModX Rolling Soft Toplight
by:
Brendan Riel
We built this mobile toplight softbox using 6" ModX truss to serve four different sets inside a tight studio space with limited overhead clearance. The goal was to keep costs down and avoid building duplicate overhead rigs or ground units for each set. So, we designed a rolling, double-layered softbox that could easily move from set to set—and double as an in-frame ceiling piece when needed.
The structure measured 14’x14’ OD and held two 12x12 frames: one with 1/2 grid and one with bleached muslin. The bleached muz was rigged with a pulley system, allowing us to raise or drop the rag when we needed to bring it into the scene as a ceiling element. We punched LiteTile through both rags for soft, consistent coverage.
For mobility, we mounted the whole rig on C&C Studio Services tri-casters.
