Rig Breakdown

Title:

Title:

Vehicle Rig With Hard Mounts & Suctions

Short film

Short film

Short film

about the rig

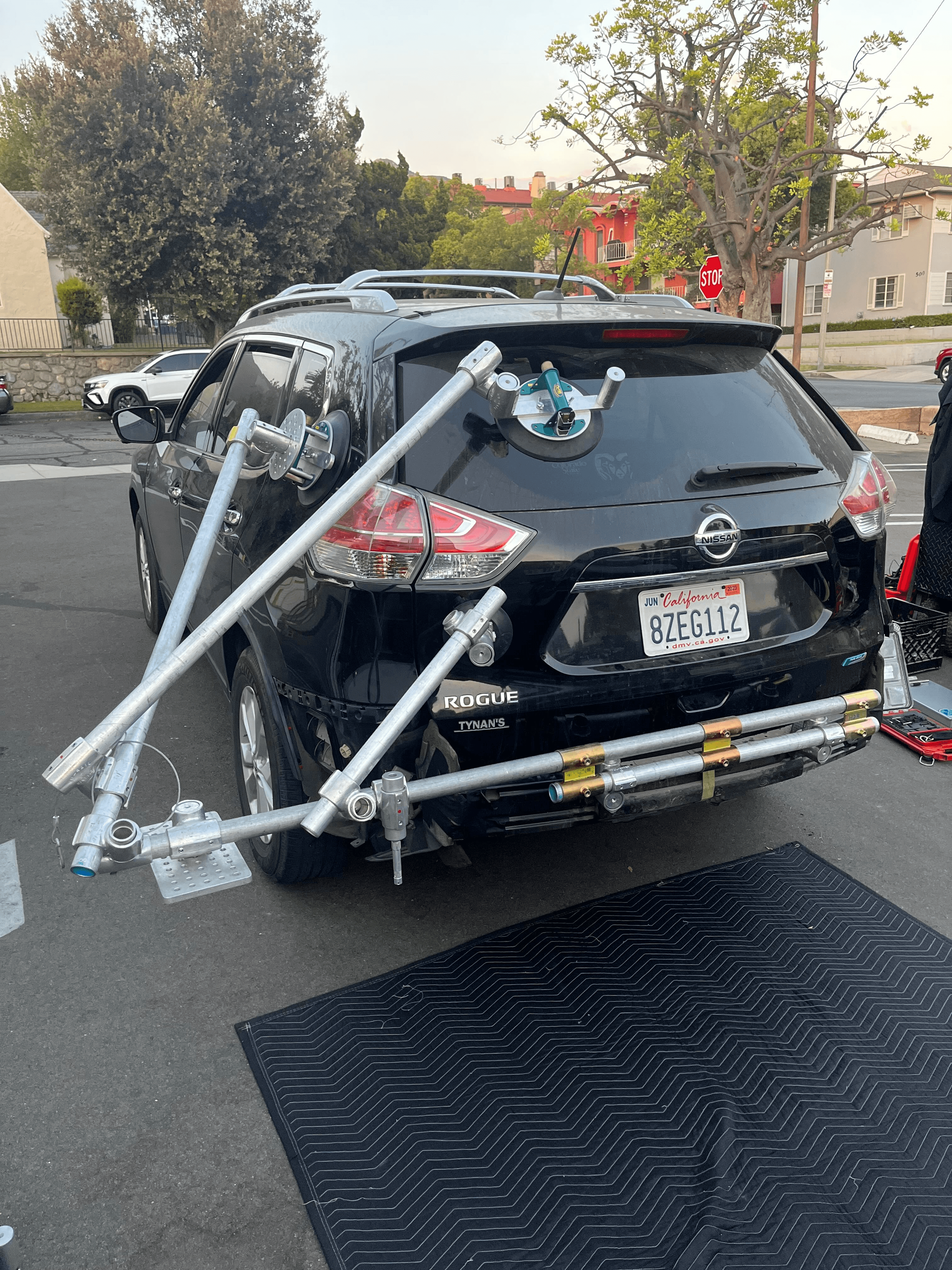

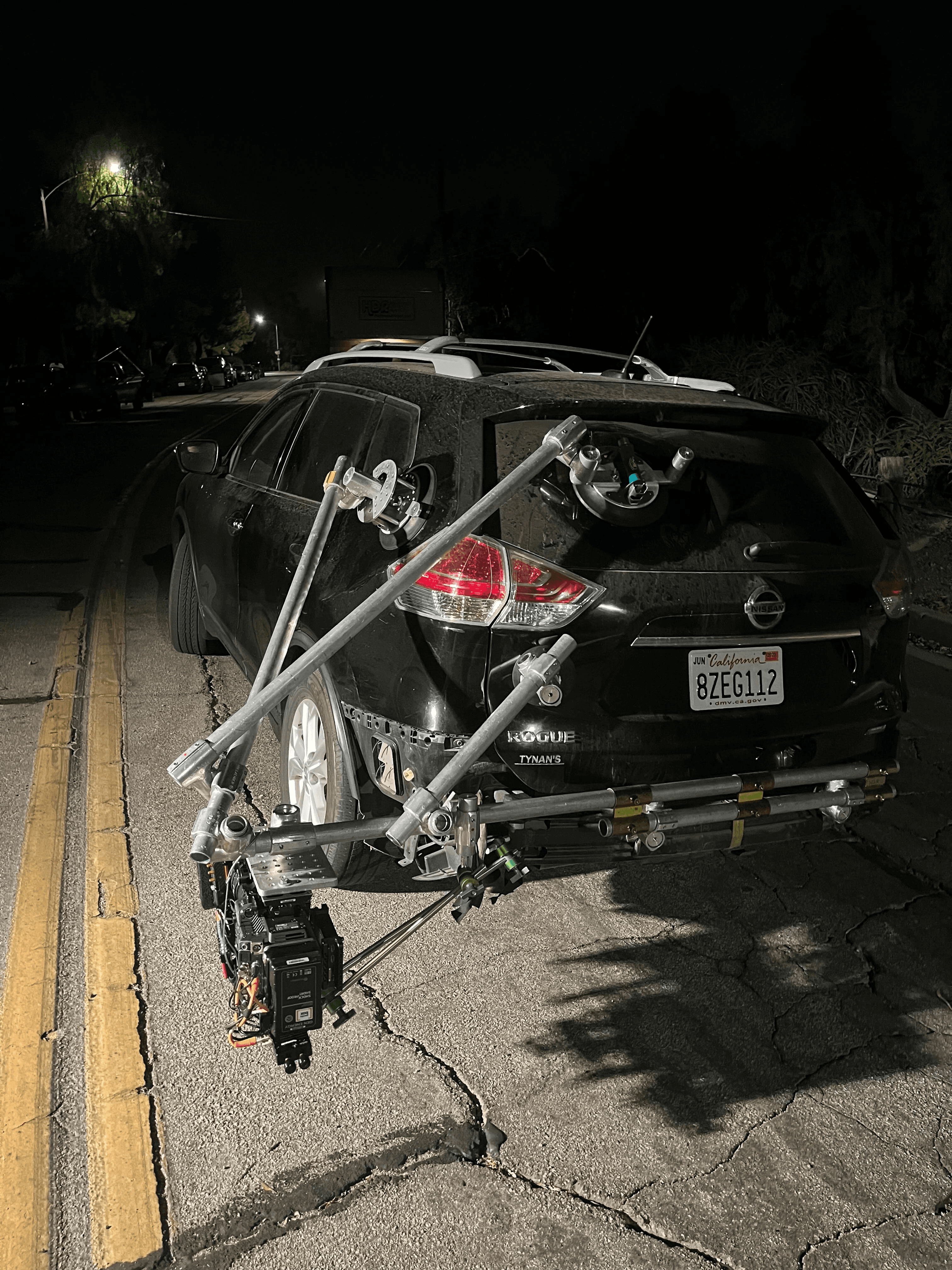

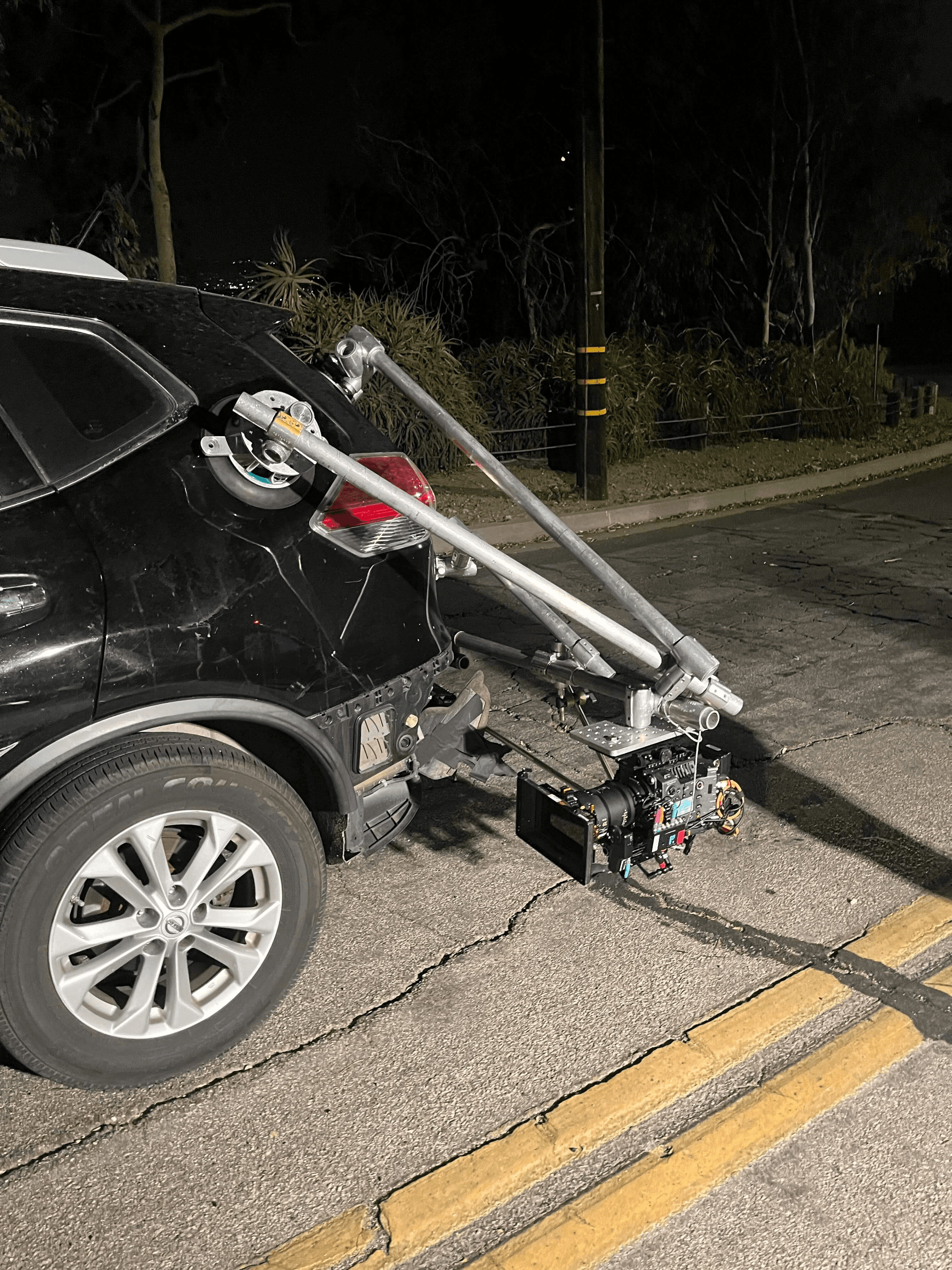

Pulled the bumper for this rig to access hard mounts on the frame. Integrated speed rail starter onto the frame and built out with speedrail and hollaenders. Used over unders for our main hard mounted support piece to add rigidity. Could have used steel pipe but we didn’t have any on hand. Triangulated near the camera mounting position with more speedrail to 10” & 6” suction cups. Sometimes when doing vehicle rigs I like to ommit using any sort of leveling head and just mount the dovetail straight to a cheeseplate. I find those mini ball heads slip unless you can triangulate the crap out of them and this is sometimes a better solution. At the end we put the bumper back on.

Vehicle Rigging

Vehicle Rigging

Vehicle Rigging

Behind the Scenes

Behind the Scenes

Behind the Scenes

Key Grip

Brendan Riel

the crew

DP:

Andrew Shankweiler

Grip Crew:

Logan Alesso

built with

Woods Suction Cups

Woods Suction Cups

Woods Suction Cups

Speedrail

Speedrail

Speedrail

Modern Studio Equipment

Modern Studio Equipment

Modern Studio Equipment

by:

Brendan Riel
