20x20 ModX Softbox
Commercial
Commercial
Commercial
Commercial
about the rig

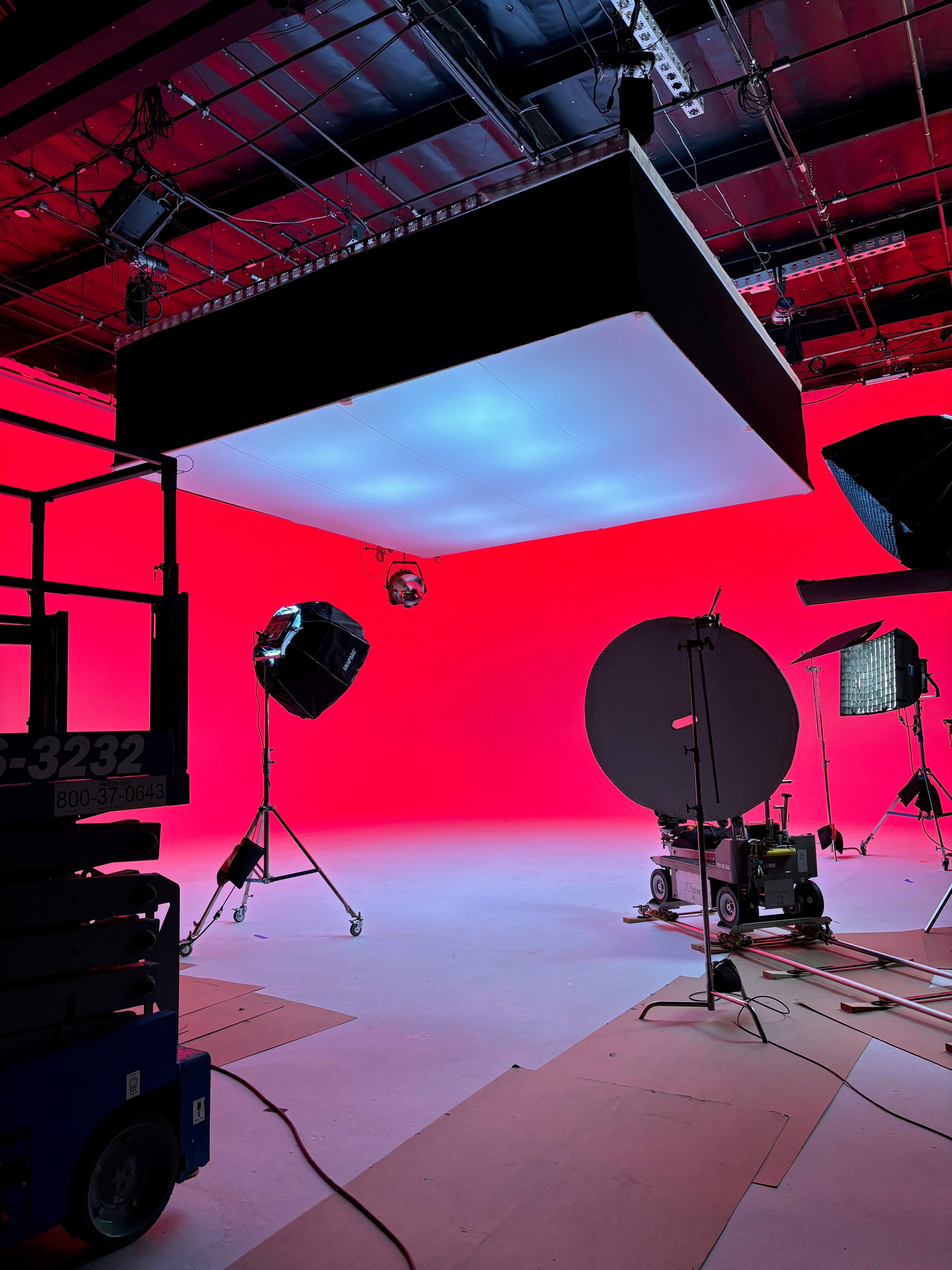

20x20x4 softbox made out of Modulus-X Mx|66|. I find the rigidity of the modulus-x allows you to tilt the box and aim it more aggressively. It’s slimmer and a bit more versatile than a 12” box truss build.

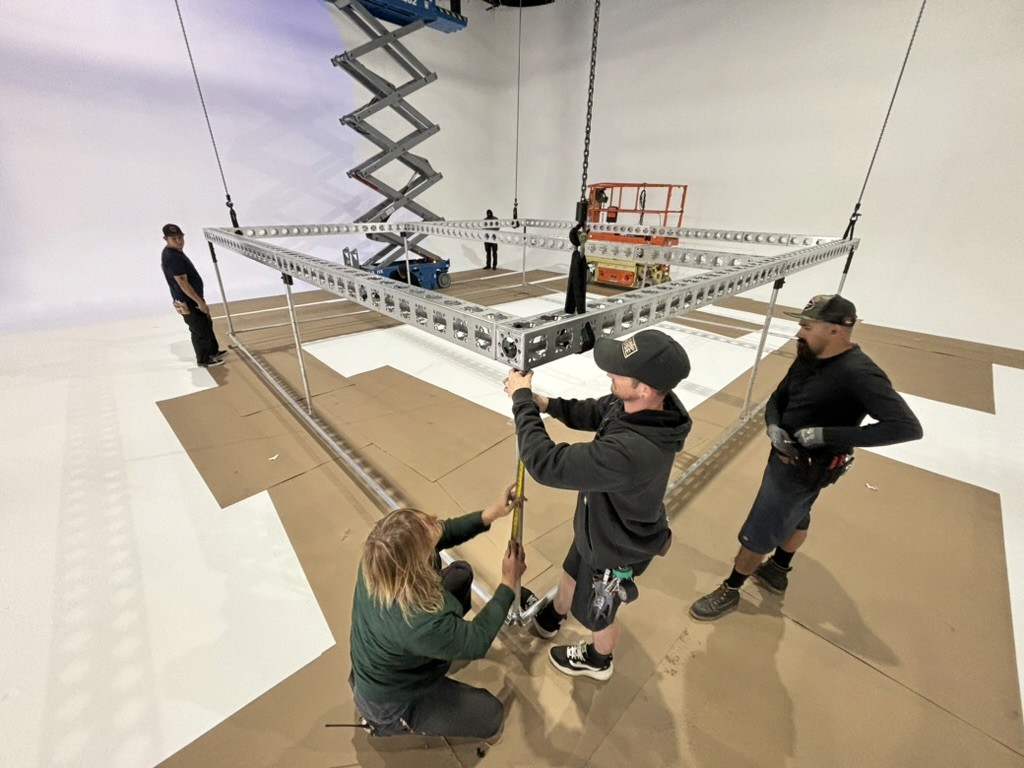

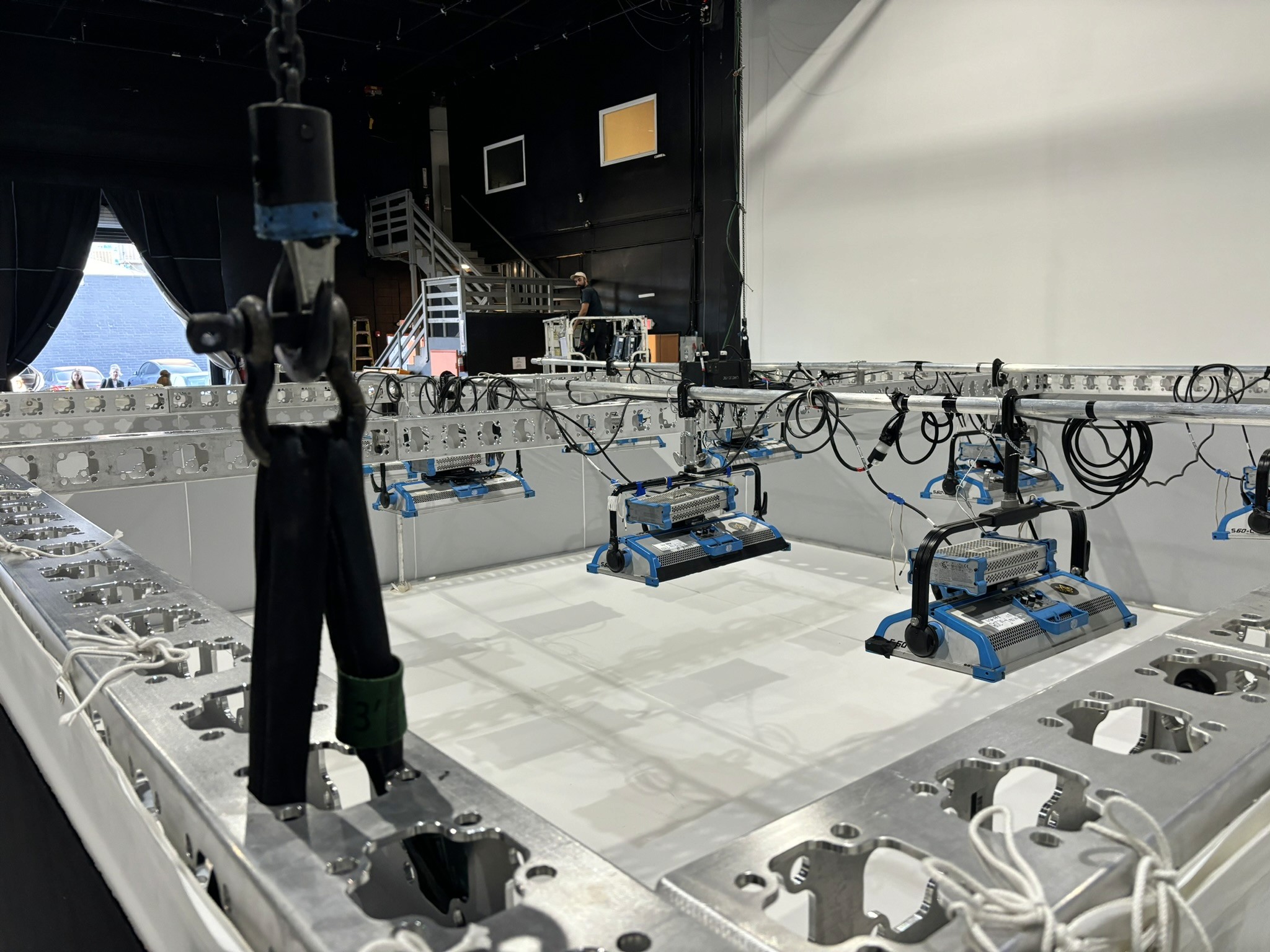

The truss provides a strong support structure for the entire build. We set this box up with a center rib for the cross pipe support. Gaffer Tony Jou employed the use of 8 skypanel S60’s to evenly fill the box. We finished the box up with some full grid diffusion and duvetyne sides. The box hung on 4 1/2 ton chain motors.
