Foxhole Camera Movement Rig

Commercial

Commercial

Commercial

Commercial

about the rig

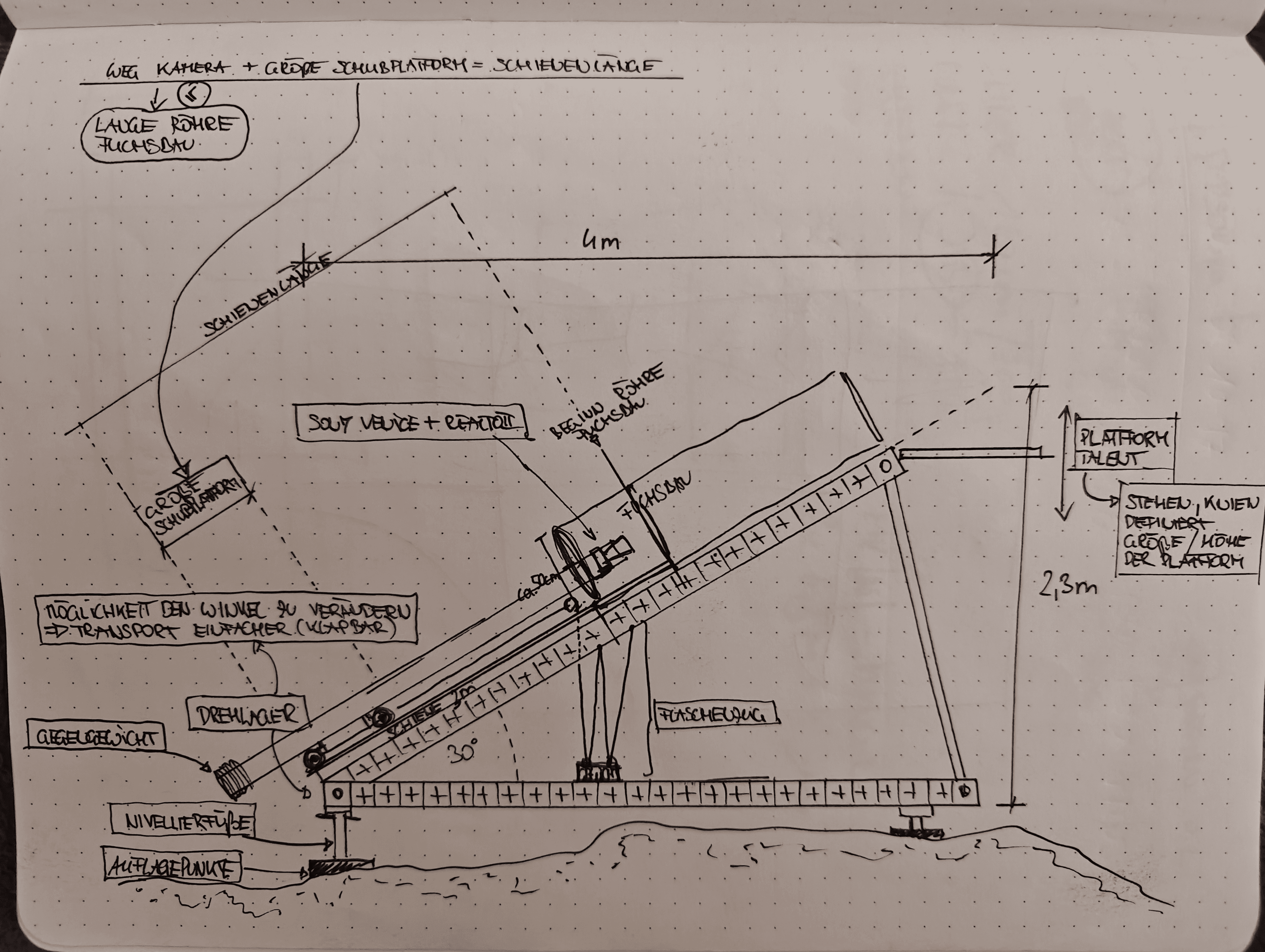

We were asked to help the DP/Dir set up a foxhole that we can dive through an any position in the forest that fits best for the vision they had in mind. It required us to work closely with art department and camera because one key issue was to be centered within the foxhole and be able to adjust and maintain that position regardless the choice of lens or bodymountoptions thrown our way and to perform that task off the main road and as fast as possible.

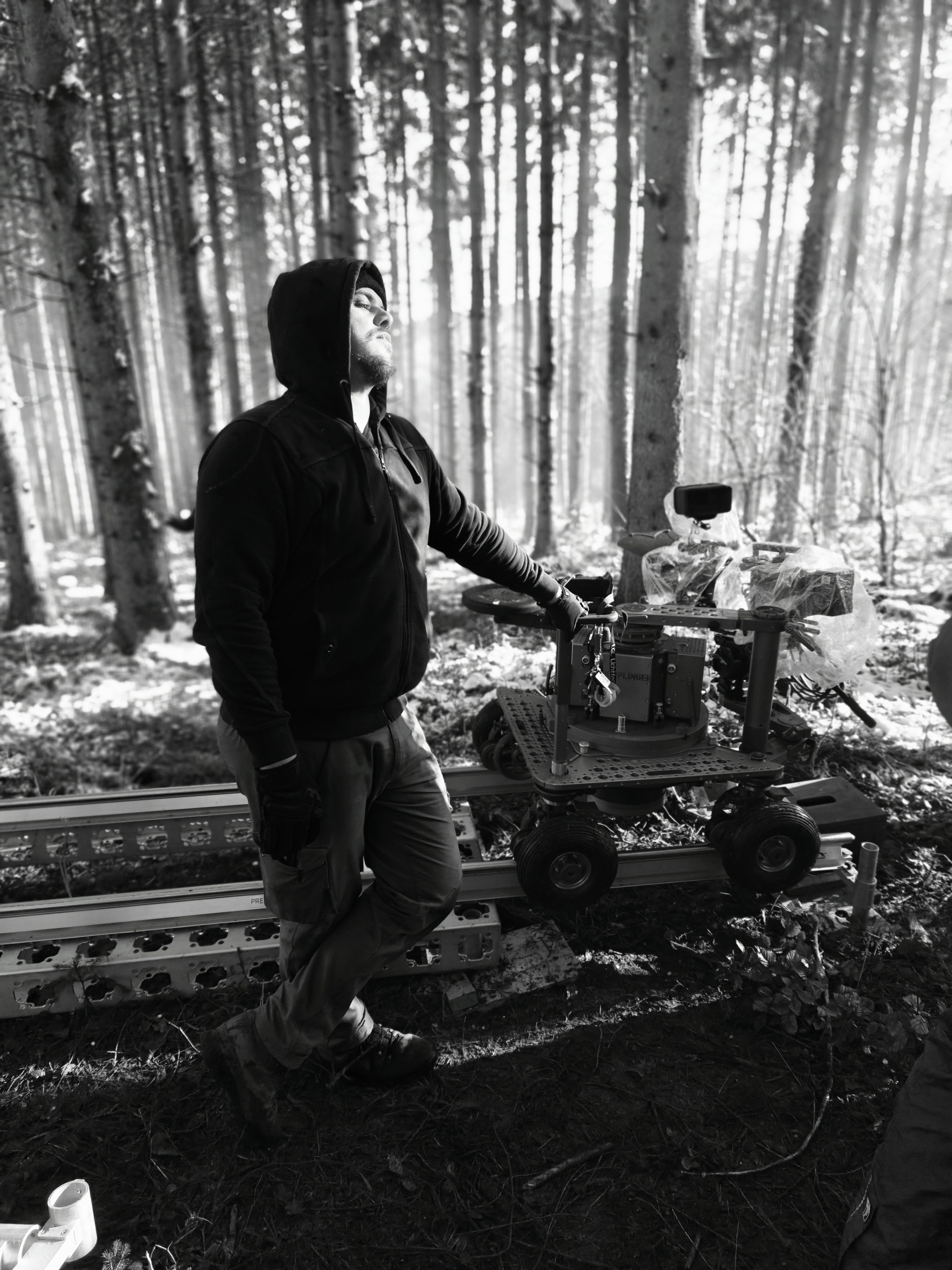

Behind the Scenes

Camera Movement

Grip Equipment

key grip

Florian Daubeck

the crew

DP:

Luis de Maia

Grip Crew:

Valentin Peitz, Lorenz Magg, Valentin Steidl

built with

Modulus X™ Mx|66|, GFM Modulus X™ Accessories , Panther Monotrack, Grip Film ball head , GF Turtle Base

by:

Florian Daubeck
